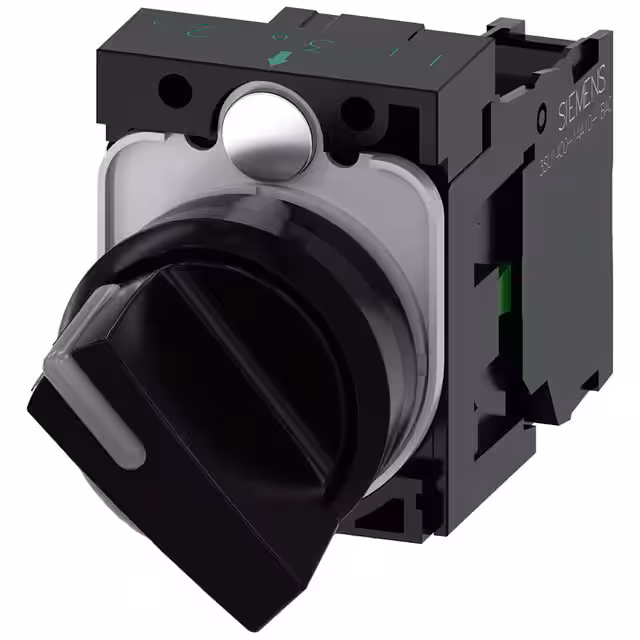

3SU11002BF101BA0

Manufacturer :

Siemens

Product Category :

Number of contacts as normally open contact :

1

Material front ring :

Plastic

Illumination Type, Color :

-

Circuit :

SPST-NO

Approval Agency :

CCC, CE, CSA, EAC, UL

Terminal Type :

Screw

Number of contacts as normally closed contact :

0

Type of electric connection :

Screw connection

Voltage Rating - AC :

500 V

Features :

-

Degree of protection (IP) :

IP67/IP69K

Base Product Number :

3SU1100

With front ring :

yes

Ingress Protection :

IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof

Electrical Life :

10,000,000 Cycles

Operating Temperature :

-25°C ~ 70°C

Switch Function :

Off-On

Type of control element :

TOGGLE

Angle of Throw :

90°

Product Status :

Active

Depth Behind Flange :

49.70mm

Mechanical Life :

1,000,000 Cycles

IP Rating :

IP66, IP67, IP69K

Voltage Rating - DC :

500 V

Number of Positions :

2

Mounting Type :

Panel Mount

Illumination Voltage (Nominal) :

-

Series :

3SU1

Panel Cutout Dimensions :

Circular - 22.30mm Dia

Degree of protection (NEMA) :

Other

Package :

Box

With light source :

No

Type :

Standard

Termination Style :

Screw Terminal

Current Rating (Amps) :

10A (AC/DC)

Number of contacts as change-over contact :

0

Illumination :

Non-Illuminated

Colour front ring :

Black
