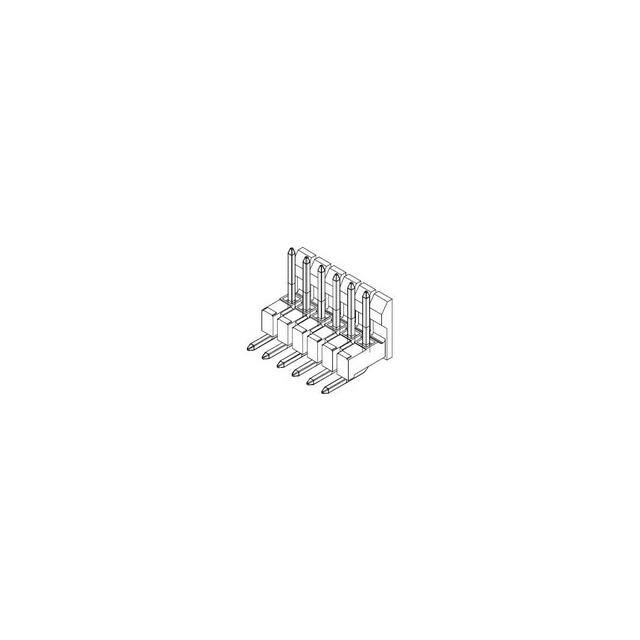

42228-0494

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Terminal Pitch :

2.54 mm

Terminal Length :

0.135 inch

Additional Feature :

RoHS Compliant

Body Breadth :

0.284 inch

PCB Contact Pattern :

RECTANGULAR

Contact Style :

SQ PIN-SKT

Mating Contact Pitch :

0.1 inch

Pbfree Code :

yes

Package :

Bag

Reach Compliance Code :

Compliant

Withdrawl Force-Min :

.556 N

Filter Feature :

No

Mounting Option 1 :

LOCKING

Manufacturer :

Molex

IEC Conformance :

No

Rated Current (Signal) :

4 A

Contact Material :

NOT SPECIFIED

MIL Conformance :

No

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Contact Gender :

Male

Series :

*

Plating Thickness :

100u inch

Insulation Resistance :

1000000000 Ω

Reference Standard :

UL, CSA

Total Number of Contacts :

6

UL Flammability Code :

94V-0

Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

1

Mounting Type :

BOARD

Termination Type :

Solder

Dielectric Withstanding Voltage :

1500VAC V

Contact Resistance :

10 MΩ

Durability :

25 Cycles

Mounting Style :

RIGHT ANGLE

Insulator Color :

Black

Connector Type :

BOARD CONNECTOR

Body Depth :

0.147 inch

Subcategory :

Headers and Edge Type Connectors

Insertion Force-Max :

1.946 N

Product Status :

Active

Body/Shell Style :

Receptacle

Mixed Contacts :

No

DIN Conformance :

No
