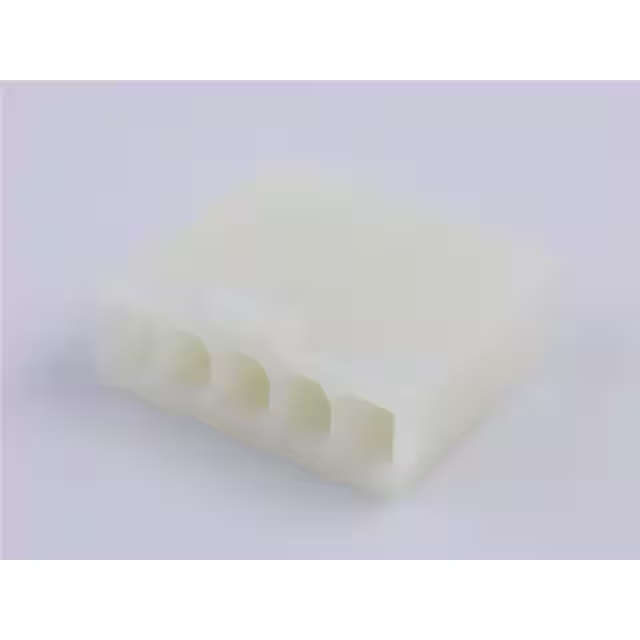

43680-1005

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Housings

Pitch (mm) :

7.49(mm)

MIL Conformance :

No

Total Number of Contacts :

5

Packaging :

Bag

Number of Contacts :

5(POS)

Product Type :

Headers and Wire Housings

Type :

Housing

Product Category :

Headers and Wire Housings

Connector Type :

RECTANGULAR POWER CONNECTOR

Empty Shell :

No

Color :

Orange

Series :

43680

Number of Contact Rows :

1

Contact Material :

NOT SPECIFIED

Product Length (mm) :

41.4(mm)

Filter Feature :

No

Product Depth (mm) :

19.15(mm)

Number of Rows :

1 Row

Body Orientation :

Straight

Number of Positions :

5 Position

Shell Material :

Polyamide

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Minimum Operating Temperature :

- 40 C

Option :

GENERAL PURPOSE

Gender :

PLUG

DIN Conformance :

No

Application :

Power

RoHS :

Details

Maximum Operating Temperature :

+ 75 C

Subcategory :

Headers and Wire Housings

Contact Gender :

Pin (Male)

Current Rating :

18 A

Package :

Box

Product :

Wire Housings

Termination Style :

Crimp

Pitch :

7.5 mm

Mixed Contacts :

No

Body/Shell Style :

PLUG

Mounting Style :

Cable Mount / Free Hanging

Reach Compliance Code :

Compliant

Product Status :

Active

Pbfree Code :

yes

UL Flammability Code :

94V-2

Flammability Rating :

UL 94 V-2

Panel Mount :

No

Housing Color :

Natural

Operating Temp Range :

-40C to 75C

Brand :

Molex

Product Height (mm) :

35.56(mm)

Current Rating (Max) :

18/Contact(A)

IEC Conformance :

No

Voltage Rating Max :

600V

Housing Material :

Nylon

Tradename :

Sabre

Housing Gender :

Male

Manufacturer :

Molex
