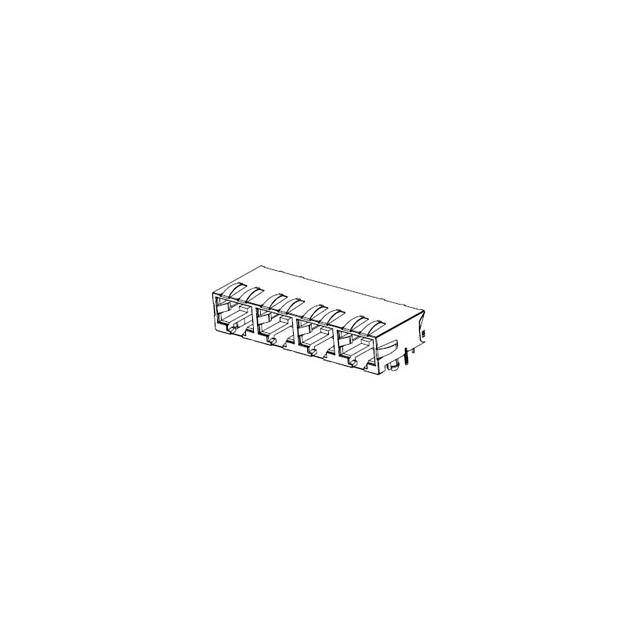

44560-0022

Manufacturer :

Molex

Product Category :

Modular Connector Jacks

Product Depth (mm) :

20.78(mm)

Mounting Type :

BOARD AND PANEL

Contact Finish Termination :

Tin (Sn)

Product Length (mm) :

29.44(mm)

JESD-609 Code :

e3

Manufacturer :

Molex

Current Rating (Max) :

1.5/Contact(A)

Category Number :

Cat 5e

Number of Terminals :

16

Shell Material :

Glass Filled Polyamide

Mounting Option 1 :

LOCKING

Withdrawl Force-Min :

22.24 N

Package :

Box

Empty Shell :

No

Contact Resistance Max :

25(mohm)

Contact Gender :

FEMALE

Contact Resistance :

25 mΩ

Family :

44560

Positions Loaded :

16

Product Height (mm) :

11.23(mm)

Insulation Resistance :

500000000 Ω

Additional Feature :

Shielded

Mounting Style :

Through Hole

Operating Temp Range :

-40C to 70C

Insulator Color :

Black

Option :

GENERAL PURPOSE

Product Status :

Active

Termination Method :

Solder

Board Mounting Option :

PEG

Pitch (mm) :

2.54(mm)

Contact Style :

TELCOM, MODULAR

Insertion Force-Max :

22.24 N

PCB Contact Pattern :

STAGGERED

Reliability :

COMMERCIAL

Pbfree Code :

yes

Plating Thickness :

50u inch

Voltage Rating Max :

150VAC

Rated Current (Signal) :

1.5 A

Subcategory :

Telecom and Datacom Connectors

Housing Material :

Polyamide

Termination Type :

Solder

Reference Standard :

UL

Housing Color :

Black

HTS Code :

8536.69.40.30

Shell Finish :

TIN/LEAD

Number of Contacts :

16(POS)

Filter Feature :

No

Reach Compliance Code :

Compliant

Body Breadth :

0.442 inch

Body Orientation :

RIGHT ANGLE

Packaging :

Tray

DIN Conformance :

No

Connector Type :

TELECOM AND DATACOM CONNECTOR

Type :

RJ-45

IEC Conformance :

No

Body Depth :

0.818 inch

Body/Shell Style :

JACK

MIL Conformance :

No

Terminal Length :

0.13 inch

Contact Plating :

Gold Over Nickel

Gender :

F

Terminal Pitch :

2.54 mm

Total Number of Contacts :

16

Number of Ports :

2(Port)

UL Flammability Code :

94V-0

Factory Lead Time :

12 Weeks

Contact Material :

Phosphor Bronze

ECCN Code :

EAR99

Series :

*

Mixed Contacts :

No
