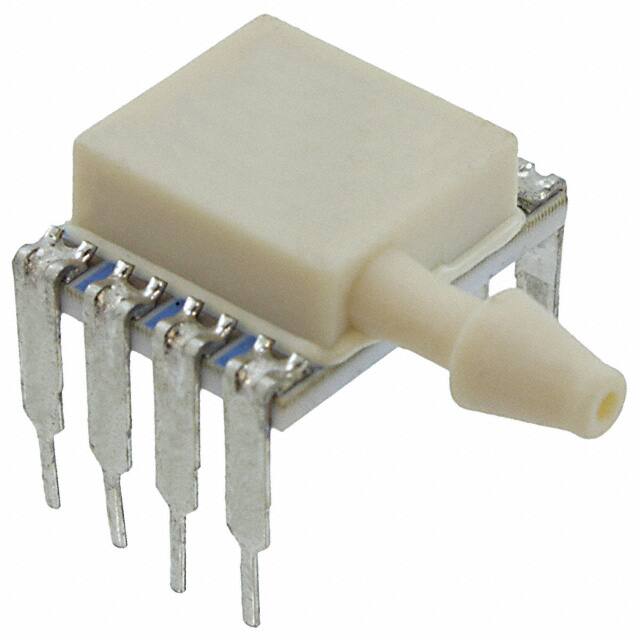

4525-SS5A005GP

Manufacturer :

TE Connectivity Measurement Specialties

Product Category :

Pressure Sensors, Transducers

Package / Case :

8-DIP Module

Reach Compliance Code :

Unknown

Additional Feature :

PORT HEIGHT = 7.5 MM, DIAMETER = 3.5 MM

Pressure Type :

Vented Gauge

Termination Type :

Solder

Mounting Type :

Through Hole

Pbfree Code :

yes

Port Style :

Barbed

Output Range :

0.50-4.50V

Base Product Number :

4525

Operating Current-Max :

3 mA

Mounting Feature :

THROUGH HOLE MOUNT

Body Breadth :

9.9 mm

Series :

MS4525

Maximum Pressure :

20 PSI (137.9 kPa)

Port Type :

Barbed

Output Type :

Analog Voltage

Body Height :

4.1 mm

Pressure Sensing Mode :

Gage

Product Status :

Active

Features :

Amplified Output, Temperature Compensated

Body Length or Diameter :

12.4 mm

Voltage - Supply :

5V

Package :

Tray

Housing :

Ceramic

Response Time :

1000 μs

Supplier Device Package :

--

Surface Mount :

No

Accuracy :

±0.25%

Termination Style :

PC Pin

Port Size :

Male - 0.14 (3.56mm) Tube

Operating Pressure :

5 PSI (34.47 kPa)

Pressure Range-Max :

20 PSI

Sensors/Transducers Type :

PRESSURE SENSOR,PEIZORESISTIVE

Output :

0.5 V ~ 4.5 V

Operating Temperature :

-25°C ~ 105°C

Applications :

Board Mount
