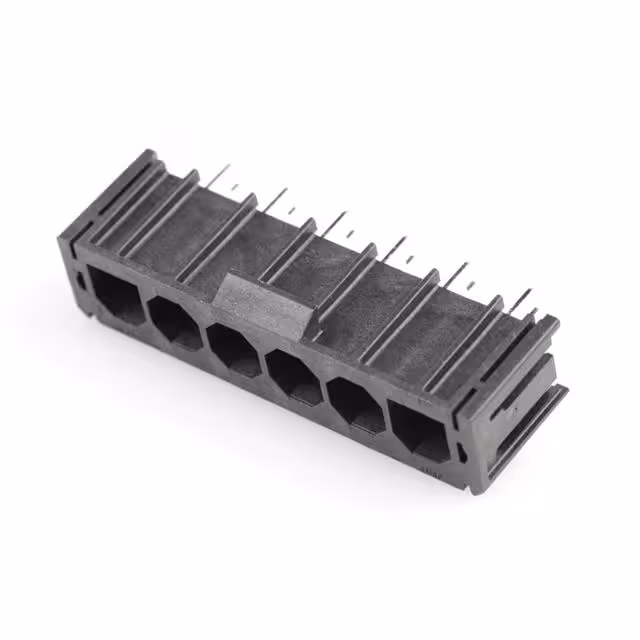

46007-1106

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Pitch :

7.5 mm

Number of Ports :

1(Port)

Flammability Rating :

UL 94 V-0

Voltage Rating Max :

600V

Contact Gender :

Pin (Male)

Operating Temperature Min Deg. C :

-40C

Max Operating Temperature :

75 °C

Package :

Box

Number of Contacts :

6(POS)

Type :

Wire to Board

Connector Type :

RECTANGULAR POWER CONNECTOR

Operating Temperature Max Deg. C :

75C

Mixed Contacts :

No

Product Category :

Headers and Wire Housings

Contact Type :

-

Product Height (mm) :

13.38(mm)

DIN Conformance :

No

RoHS :

Details

JESD-609 Code :

e3

Option :

GENERAL PURPOSE

Subcategory :

Headers and Wire Housings

Mounting Style :

Through Hole

Empty Shell :

No

Minimum Operating Temperature :

- 40 C

Pitch (mm) :

7.5(mm)

Termination Style :

Solder Pin

Accessory Type :

-

Product Status :

Active

Lifecycle Status :

Production (Last Updated: 2 years ago)

Operating Temp Range :

-40C to 75C

Voltage Rating :

600 V

Country of Origin :

US

Glow Wire Compliant :

Compliant

Mount :

Through Hole

Termination :

Solder

Mounting Angle :

RIGHT ANGLE

Product Length (mm) :

51.05(mm)

Manufacturer :

Molex

Tradename :

Sabre

Current Rating :

18 A

Shell Material :

GLASS FILLED POLYAMIDE46

Orientation :

RIGHT ANGLE

Housing Material :

Thermoplastic

Termination Method :

Solder

MIL Conformance :

No

Number of Terminals :

12

Application :

Power

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Termination :

TIN (35)

Pbfree Code :

yes

Product Diameter (mm) :

Not Required(mm)

Product Type :

Headers and Wire Housings

Termination Type :

Solder

Body Orientation :

RIGHT ANGLE

Product :

Headers

Flammability :

94V-0

Product Depth (mm) :

19.79(mm)

Contact Material :

Brass

Number of Positions :

6 Position

Min Operating Temperature :

-40 °C

Gender :

HDR

Current Rating (Max) :

18/Contact(A)

Number of Rows :

1 Row

Number of Circuits :

6

Housing Color :

Black

Reach Compliance Code :

Unknown

Termination Post Length :

3.81 mm

Brand :

Molex

Number of Contact Rows :

1

UL Flammability Code :

94V-0

Plating :

Tin

Packaging :

Bag

Filter Feature :

No

Mounting Type :

BOARD

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Contact Plating :

TIN OVER NICKEL

Series :

46007

IEC Conformance :

No

Total Number of Contacts :

6

Maximum Operating Temperature :

+ 75 C
