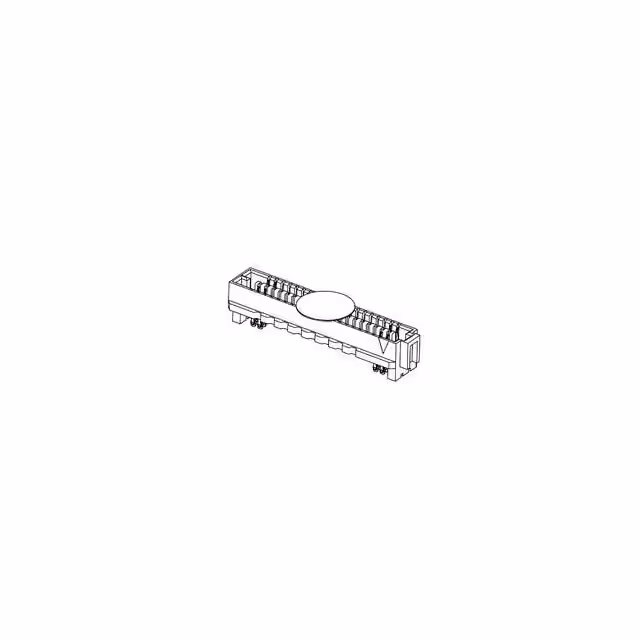

46557-4245

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Plating :

Gold Over Nickel

Tradename :

SEARAY

Contact Resistance :

10 MΩ

Product Height (mm) :

6.04(mm)

Termination Method :

Solder

Total Number of Contacts :

160

Flammability Rating :

UL 94 V-0

Contact Gender :

Male

Gender :

RCP

ECCN Code :

EAR99

Reference Standard :

UL, CSA

Current Rating :

2.7 A

Body Orientation :

Straight

Mounting Type :

BOARD

Operating Temp Range :

-55C to 125C

Mating Contact Pitch :

0.05 inch

Product Category :

Board to Board and Mezzanine Connectors

Connector Type :

BOARD STACKING CONNECTOR

Product Length (mm) :

57.96(mm)

JESD-609 Code :

e3

Insulation Resistance :

25000000000 Ω

Package :

Box

Maximum Operating Temperature :

+ 125 C

Body Breadth :

0.278 inch

Rated Current (Signal) :

2.7 A

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Contact Pattern :

RECTANGULAR

Withdrawl Force-Min :

.139 N

Mating Contact Row Spacing :

0.05 inch

Plating Thickness :

30u inch

HTS Code :

8536.69.40.40

Durability :

100 Cycles

RoHS :

Details

Product Type :

Board to Board and Mezzanine Connectors

Application :

Board-to-Board

Product Depth (mm) :

7.06(mm)

Number of Contacts :

160(POS)

Number of Positions :

160 Position

Voltage Rating Max :

240VAC

Subcategory :

Board to Board and Mezzanine Connectors

Orientation :

Vertical

PCB Contact Pattern :

RECTANGULAR

Brand :

Molex

Termination Style :

Solder

PCB Contact Row Spacing :

1.27 mm

Packaging :

Tape and Reel

Reach Compliance Code :

Compliant

Contact Resistance Max :

10(mohm)

Pitch :

1.27 mm

Insertion Force-Max :

.5004 N

Polarization Key :

POLARIZED HOUSING

Dielectric Withstanding Voltage :

900VAC V

Housing Color :

Black

Product Status :

Active

Mounting Style :

Surface Mount

Flammability :

94V-0

Insulator Color :

Black

Pitch (mm) :

1.27(mm)

Termination Type :

Surface Mount

Series :

46557

Mounting Option 1 :

LOCKING

Terminal Pitch :

1.27 mm

Minimum Operating Temperature :

- 55 C

Current Rating (Max) :

2.7/Contact(A)

Manufacturer :

Molex

Body Depth :

0.238 inch

Mounting Angle :

Vertical

Number of Contact Rows :

4

Type :

Board to Board

Reliability :

COMMERCIAL

Number of Rows :

4 Row

Voltage Rating :

240 VAC

Body/Shell Style :

Receptacle

Contact Material :

COPPER ALLOY

Number Of PCB Rows :

4
