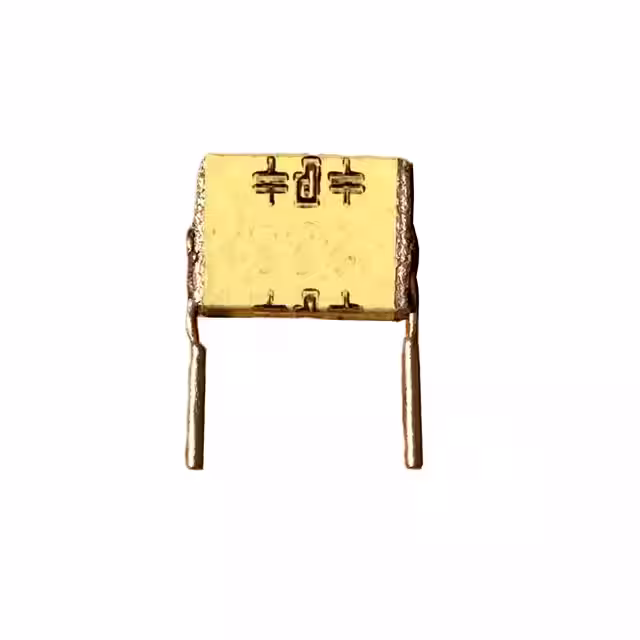

474K100RA3

Manufacturer :

Quantic™ Paktron

Product Category :

Film Capacitors

Terminal Pitch :

7.5 mm

Lead Spacing :

0.295" (7.50mm)

Termination :

PC Pins

Positive Tolerance :

10%

Tolerance :

±10%

Voltage Rating - DC :

100V

ESR (Equivalent Series Resistance) :

6 mOhms

Size Code :

3518

Height - Seated (Max) :

0.303" (7.70mm)

Height :

7.7 mm

Terminal Shape :

Wire

Size / Dimension :

0.350" L x 0.181" W (8.90mm x 4.60mm)

Length :

8.9 mm

Product Status :

Active

Package :

Bulk

Manufacturer :

Paktron Capacitors

Mounting Feature :

THROUGH HOLE MOUNT

Surface Mount :

No

Package Shape :

RECTANGULAR PACKAGE

Dielectric Material :

Polyester, Metallized

Reach Compliance Code :

Compliant

Rated (DC) Voltage (URdc) :

100 V

JESD-609 Code :

e0

Voltage Rating - AC :

80V

Number of Terminals :

2

Width :

4.6 mm

Pbfree Code :

No

Rated (AC) Voltage (URac) :

80 V

Packing Method :

Bulk

Terminal Finish :

Tin/Lead (Sn/Pb)

Package / Case :

Radial

Features :

Low ESR, High Temperature

HTS Code :

8532.25.00.70

Negative Tolerance :

10%

Applications :

EMI, RFI Suppression; High Pulse, DV/DT

Capacitor Type :

FILM CAPACITOR

ECCN Code :

EAR99

Capacitance :

0.47 µF

Operating Temperature :

-55°C ~ 125°C

Mounting Type :

Through Hole

Series :

Angstor?

Ratings :

-
