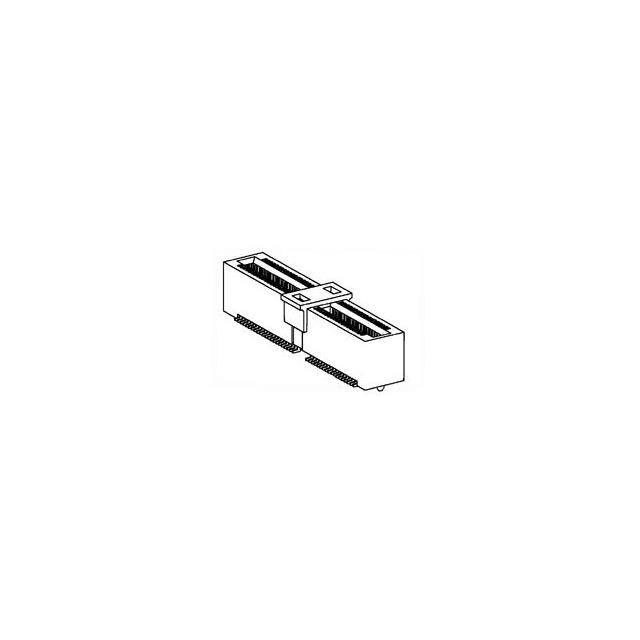

48191-1000

Manufacturer :

Molex

Product Category :

Unclassified

Termination Method :

Solder

Voltage Rating Max :

400VAC

PPAP :

No

Option :

GENERAL PURPOSE

Orientation :

Vertical

JESD-609 Code :

e3

Number Of PCB Rows :

2

Rated Current (Signal) :

1.7 A

Min Operating Temperature :

-40 °C

PCB Contact Row Spacing :

7.0104 mm

ECCN (US) :

EAR99

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Terminal Pitch (mm) :

0.8

EU RoHS :

Compliant

Product Weight (g) :

2.74

Mating Contact Pitch :

0.031 inch

Body Orientation :

Straight

Current Rating :

1.5 A

PCB Contact Pattern :

RECTANGULAR

Dielectric Withstanding Voltage :

500VAC V

Manufacturer :

Molex

Minimum Operating Temperature (°C) :

-40

Country of Origin :

HK

MIL Conformance :

No

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Operating Temperature :

-40 to 105 °C

Contact Pattern :

RECTANGULAR

Mounting Type :

BOARD

Mating Cycle (Cycles) :

100

Product Status :

Active

Pitch (mm) :

0.8(mm)

Number of Circuits :

60

Total Number of Contacts :

60

Housing Color :

Black

Termination :

Solder

Type :

Card Edge

Contact Plating :

Gold

Mounting :

Surface Mount

IEC Conformance :

No

Gender :

F

Number of Contacts :

60

Series :

*

Contact Gender :

FEMALE

Contact Resistance :

30 mΩ

Product Height (mm) :

8.65

Subcategory :

Headers and Edge Type Connectors

Maximum Current Rating (A) :

1.7/Contact

Contact Style :

BELLOWED TYPE

Mount :

Surface Mount

Insulation Resistance :

1000000000 Ω

Mounting Style :

Surface Mount

Contact Material :

Phosphor Bronze

Color :

Black

Package :

Box

Pbfree Code :

yes

ECCN Code :

EAR99

Packaging :

Tube

Reference Standard :

UL, CSA

Board Mounting Option :

PEG

Connector Type :

CARD EDGE CONNECTOR

Filter Feature :

No

Number of Positions :

60

Insulator Color :

Black

RoHS :

Compliant

HTS Code :

8536.69.40.40

Body Depth :

0.341 inch

Pitch :

0.8000 mm

Termination Type :

Surface Mount

UL Flammability Code :

94V-0

Reach Compliance Code :

Compliant

Plating Thickness :

15u inch

Plating :

Tin

Product Depth (mm) :

8.8

Mixed Contacts :

No

Housing Material :

Polymer

Card Type :

Dual Edge

Factory Lead Time :

14 Weeks, 2 Days

Current Rating (Max) :

1.7/Contact(A)

Reliability :

COMMERCIAL

Automotive :

No

Max Operating Temperature :

105 °C

Durability :

100 Cycles

Body Breadth :

0.295 inch

Number of Rows :

2

Contact Finish Termination :

Tin (Sn)

Operating Temp Range :

-40C to 105C

Insulation Material :

Polymer

Number of Contact Rows :

2

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Card Thickness :

1.6002 mm

Mounting Option 1 :

LOCKING

Max Voltage Rating (AC) :

400 V

Maximum Operating Temperature (°C) :

105

Maximum Voltage Rating :

400VAC

DIN Conformance :

No

Product Length (mm) :

26.2

Terminal Pitch :

0.8 mm
