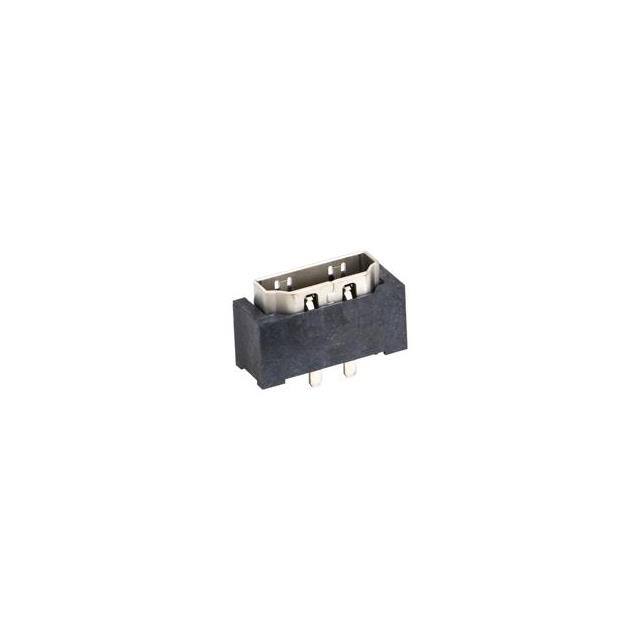

48307-7012

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Orientation :

Vertical

Gender :

Receptacle

Filter Feature :

No

Type :

HDMI

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Number of Terminals :

19

Country of Origin :

CN

ECCN Code :

EAR99

Body Orientation :

Straight

Mixed Contacts :

No

Pitch (mm) :

0.5(mm)

Mounting :

Surface Mount

Total Number of Contacts :

19

Schedule B :

8536695050

Termination :

Solder

Radiation Hardening :

No

Mount :

Surface Mount

UL Flammability Code :

94V-0

Manufacturer :

Molex

Number of Ports :

1(Port)

Mounting Type :

BOARD

Operating Temperature :

-20 to 85 °C

MIL Conformance :

No

Termination Type :

Surface Mount

Shell Finish :

Nickel

Operating Temp Range :

-20C to 85C

Product Status :

Active

Base/Housing Material :

Thermoplastic

Number of Contacts :

19(POS)

HTS Code :

8536.69.40.30

RoHS :

Compliant

Product Diameter (mm) :

Not Required(mm)

Reach Compliance Code :

Compliant

Current Rating (Max) :

0.5/Contact(A)

DIN Conformance :

No

Number of Rows :

2

Pbfree Code :

yes

Connector Type :

TELECOM AND DATACOM CONNECTOR

Packaging :

Tape and Reel

Shell Material :

COPPER ALLOY

Number of Circuits :

19

Contact Material :

COPPER ALLOY

Halogen Free :

Low Halogen

Option :

GENERAL PURPOSE

Mounting Style :

Surface Mount

Termination Method :

Solder

Series :

*

Pitch :

0.5000 mm

Voltage Rating (AC) :

40 V

Number of Positions :

19

Contact Plating :

Gold

Housing Material :

Thermoplastic

Package :

Box

IEC Conformance :

No

Product Length (mm) :

33.6(mm)

Operating Temperature Min Deg. C :

-20C

Operating Temperature Max Deg. C :

85C

Body/Shell Style :

Receptacle

Contact Gender :

FEMALE

Empty Shell :

No

Voltage Rating Max :

40VAC

Plating :

Tin
