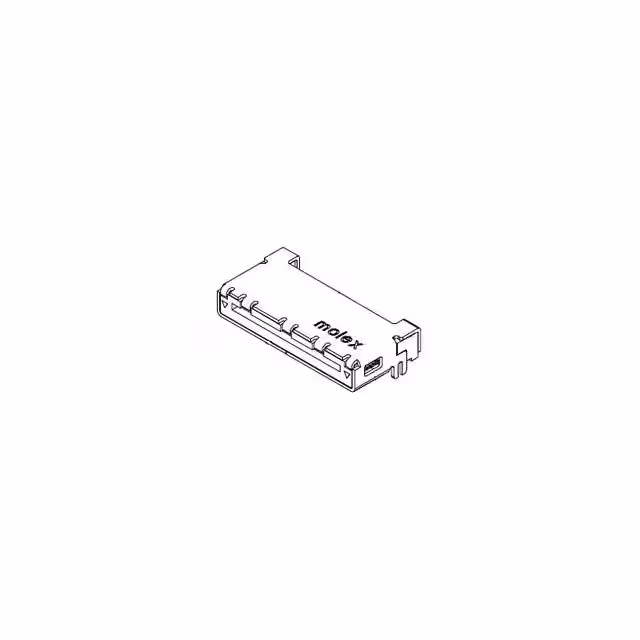

49045-0011

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Total Number of Contacts :

24

Pitch :

0.5000 mm

Contact Style :

CENTRONIC

Type :

Board to Board

Number of Contact Rows :

1

Product Height (mm) :

3(mm)

Current Rating (Max) :

0.5/Contact(A)

Insulator Color :

Black

Mounting Style :

Surface Mount

Operating Temperature :

-20 to 65 °C

Mating Contact Pitch :

0.02 inch

Contact Gender :

Male

Contact Resistance :

100 mΩ

Insulation Resistance :

1000000000 Ω

Reach Compliance Code :

Compliant

Base/Housing Material :

Thermoplastic

Contact Finish Termination :

Gold

Voltage Rating Max :

30VDC/30VAC

Body Orientation :

RIGHT ANGLE

Rated Current (Signal) :

0.5 A

Mounting :

Surface Mount

Mounting Type :

BOARD

Plating Thickness :

8u inch

Connector Type :

BOARD CONNECTOR

Housing Color :

Black

Pitch (mm) :

0.5(mm)

Termination Method :

Solder

Number of Contacts :

24 POS

Reference Standard :

UL

Product Depth (mm) :

8.2(mm)

Series :

*

Housing Material :

Thermoplastic

Gender :

Receptacle

Mounting Option 1 :

GUIDE SLOT

Manufacturer :

Molex

HTS Code :

8536.69.40.40

Operating Temp Range :

-20C to 65C

Terminal Pitch :

0.508 mm

Packaging :

Tape and Reel

Contact Pattern :

RECTANGULAR

Body/Shell Style :

Receptacle

Number of Rows :

1

Product Status :

Active

Reliability :

COMMERCIAL

Durability :

2500 Cycles

Package :

Box

Polarization Key :

POLARIZED HOUSING

Product Length (mm) :

16.4(mm)

Termination Type :

Surface Mount

ECCN Code :

EAR99

Body Depth :

0.307 inch

Number Of PCB Rows :

1

Contact Material :

Stainless Steel

PCB Contact Pattern :

RECTANGULAR

Subcategory :

Headers and Edge Type Connectors

Body Breadth :

0.118 inch

Contact Plating :

Gold
