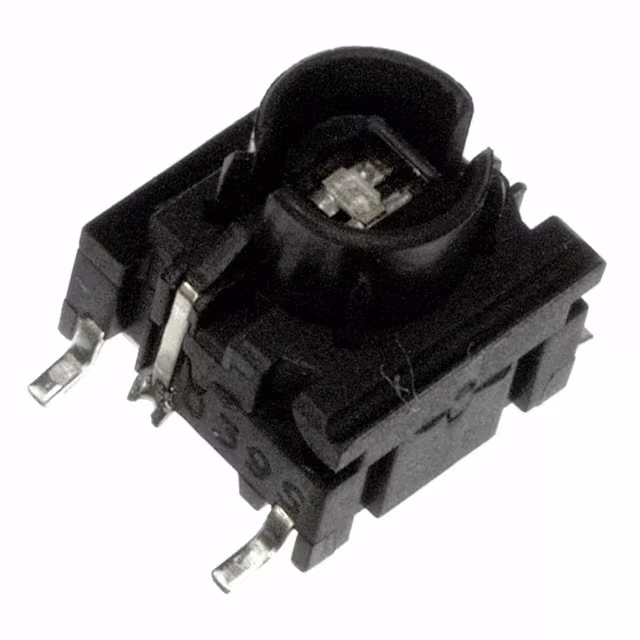

4FSH901

Manufacturer :

MEC switches

Product Category :

Tradename :

Illumec

Voltage Rating (VDC) :

24(V)

Terminal Type :

Gull wing

Contact Form :

SPST

Mechanical Life :

10000000

Pole Throw Configuration :

SPST

Illumination Type :

LED

Product Depth (mm) :

14(mm)

Length :

10.3 mm

Current Rating (Max) :

0.05(A)

Height :

10.4 mm

Illumination Color :

Blue

Actuator Style :

Round Button

Termination Style :

Gull Wing Lead

Series :

4F

Actuator :

Plunger

ECCN :

EAR99

Minimum Operating Temperature :

- 30 C

Actuator Length (mm) :

4(mm)

IP Rating :

IP67

Operating Temp Range :

-40C to 160C

Switch Function Configuration :

N.O.

RoHS :

Details

Itar Registered :

No

Power Rating :

95 mW

Maximum Operating Temperature :

+ 85 C

Operating Force :

3.5 N

Current Rating :

50 mA

Product Height (mm) :

10.4(mm)

Mounting Style :

SMD/SMT

Body Orientation :

Straight

Width :

10.3 mm

Product Length (mm) :

10.3(mm)

Color :

Black

Lamp Type :

LED

Switch Function :

OFF - (ON)
