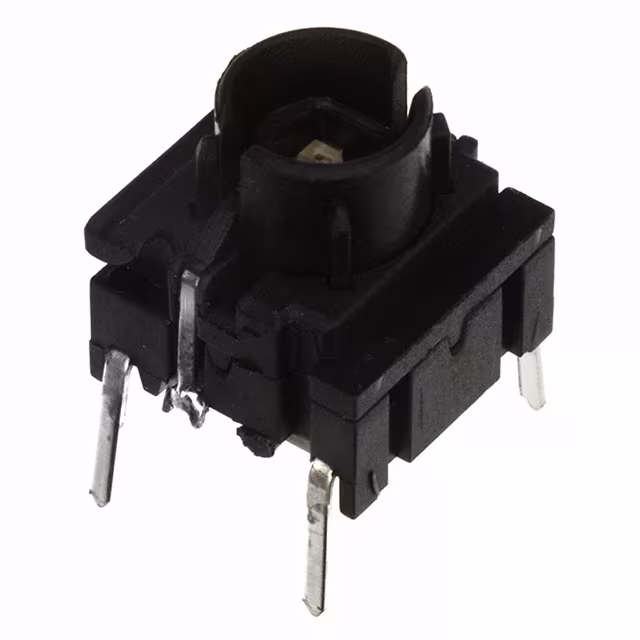

4FTH922

Manufacturer :

MEC switches

Product Category :

Mounting Style :

Through Hole

ECCN :

EAR99

Contact Rating @ Voltage :

0.05A @ 24VDC

Series :

4F

Itar Registered :

No

Tradename :

Illumec

Height :

10.4 mm

IP Rating :

IP67

Illumination Type, Color :

LED, Green

Contact Form :

SPST

Color :

Black

Mechanical Life :

10,000,000 Cycles

Current Rating :

50 mA

Operating Temperature :

-30°C ~ 85°C

Actuator Orientation :

Top Actuated

Maximum Operating Temperature :

+ 85 C

Lamp Type :

LED

Illumination Color :

Green

Actuator Length, Right Angle :

-

Length :

10.3 mm

Mounting Type :

Through Hole

Operating Force :

3.5 N

Outline :

10.10mm x 10.10mm

Features :

Sealed - Flux Protection

Switch Function :

OFF - (ON)

Illumination :

Illuminated

Actuator Height off PCB, Vertical :

10.40mm

Minimum Operating Temperature :

- 30 C

Other Names :

679-2252

RoHS :

Details

Switch Travel :

1.00mm

Illumination Voltage (Nominal) :

2.2 VDC

Circuit :

SPST-NO

Power Rating :

75 mW

Actuator Type :

Plunger for Cap

Packaging :

Tube

Termination Style :

Solder Pin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Actuator Material :

Polyphenylene Sulfide (PPS)

Width :

10.3 mm

Actuator :

Plunger

Ingress Protection :

IP67 - Dust Tight, Waterproof
