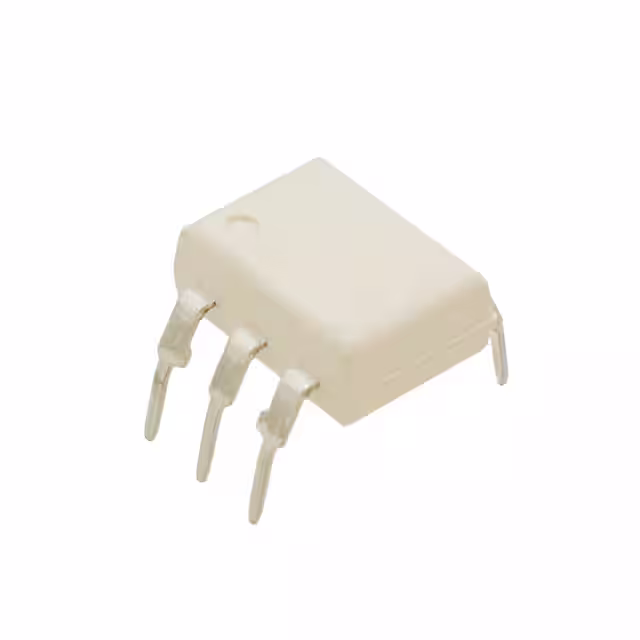

4N37-V

Manufacturer :

Everlight Electronics

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Max Power Dissipation :

200mW

Package / Case :

6-DIP (0.300, 7.62mm)

Current - DC Forward (If) (Max) :

60mA

Output Type :

Transistor with Base

Operating Temperature :

-55°C~110°C

Voltage - Forward (Vf) (Typ) :

1.2V

Input Type :

DC

Configuration :

Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Transfer Ratio :

100%

Published :

2013

Factory Lead Time :

20 Weeks

Number of Elements :

1

Dark Current-Max :

50nA

Max Input Current :

50mA

Mounting Type :

Through Hole

Collector Emitter Saturation Voltage :

300mV

Voltage - Isolation :

5000Vrms

Mount :

Through Hole

Packaging :

Tube

Number of Channels :

1

Additional Feature :

UL APPROVED, VDE APPROVED

Pbfree Code :

yes

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Number of Pins :

6

Collector Emitter Voltage (VCEO) :

300mV

Turn On / Turn Off Time (Typ) :

10μs, 9μs

Output Voltage :

80V

Current Transfer Ratio (Min) :

100% @ 10mA
