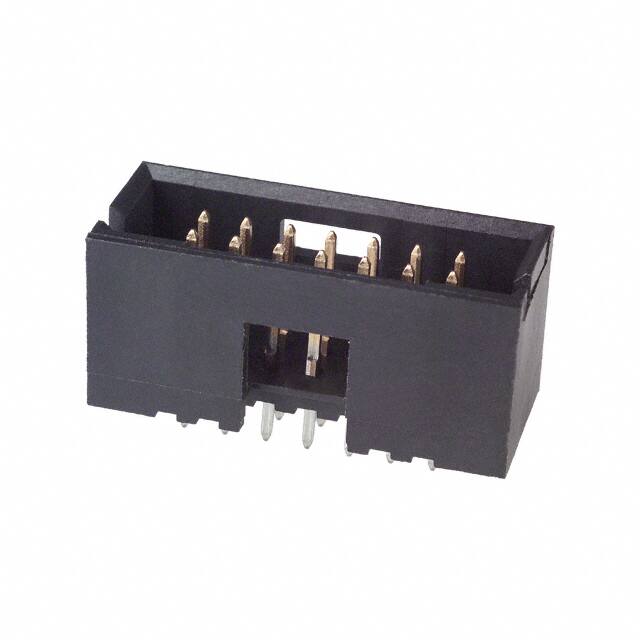

5-103169-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Product Category :

Headers and Wire Housings

Contact Material :

NOT SPECIFIED

Number of Rows :

2 Row

JESD-609 Code :

e3

Mating Post Length :

8.08 mm

Tradename :

AMPMODU

Base/Housing Material :

Thermoplastic

Number of Positions :

14 Position

Contact Plating :

Gold

Dielectric Withstanding Voltage :

750VAC V

Rated Current (Signal) :

3 A

Mounting Option 1 :

GUIDE SLOT

Mounting Angle :

Straight

IEC Conformance :

No

Plating Thickness :

30u inch

Total Number of Contacts :

14

Contact Style :

SQ PIN-SKT

Contact Gender :

Male

RoHS :

Details

Filter Feature :

No

Product Length (mm) :

24.89(mm)

Terminal Pitch :

2.54 mm

MIL Conformance :

No

Reliability :

COMMERCIAL

Body Orientation :

Straight

Product Height (mm) :

11.17(mm)

Product Length :

24.89 mm

Brand Name :

AMP

Polarization Key :

POLARIZED HOUSING

Number of Contact Rows :

2

Termination Method :

Solder

Body/Shell Style :

Receptacle

Product Type :

Headers and Wire Housings

Mounting Option 2 :

LOCKING

Insulator Color :

Black

Mounting Type :

BOARD

Mixed Contacts :

No

Termination Style :

Solder Pin

Termination Post Length :

3.18 mm

Brand :

TE Connectivity

Type :

Shrouded Header

Pitch :

2.5400 mm

Maximum Operating Temperature :

+ 105 C

Housing Color :

Black

Mating Contact Pitch :

0.1 inch

Factory Lead Time :

22 Weeks

Row Spacing :

2.54 mm

Series :

AMPMODU Mod II

Pitch (mm) :

2.54(mm)

Minimum Operating Temperature :

- 55 C

Body Depth :

0.44 inch

Number Of PCB Rows :

2

Body Breadth :

0.4 inch

DIN Conformance :

No

Packaging :

Tray

Operating Temperature :

-55 to 105 °C

Product :

Headers

Number of Contacts :

14(POS)

Application :

Board-to-Board

Operating Temp Range :

-65C to 105C

Mating Contact Row Spacing :

0.1 inch

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Reach Compliance Code :

Compliant

Additional Feature :

SHROUDED

Termination Type :

Solder

Flammability Rating :

UL 94 V-0

Contact Pattern :

RECTANGULAR

Gender :

Header

Current Rating (Max) :

3/Contact(A)

Housing Material :

Thermoplastic

Terminal Length :

0.125 inch

Option :

GENERAL PURPOSE

Insulation Resistance :

5000000000 Ω

HTS Code :

8536.69.40.40

Mounting Style :

Straight

Connector Type :

BOARD CONNECTOR

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Mounting :

Through Hole

Reference Standard :

UL, CSA

PCB Contact Row Spacing :

2.54 mm

Product Depth (mm) :

10.16(mm)
