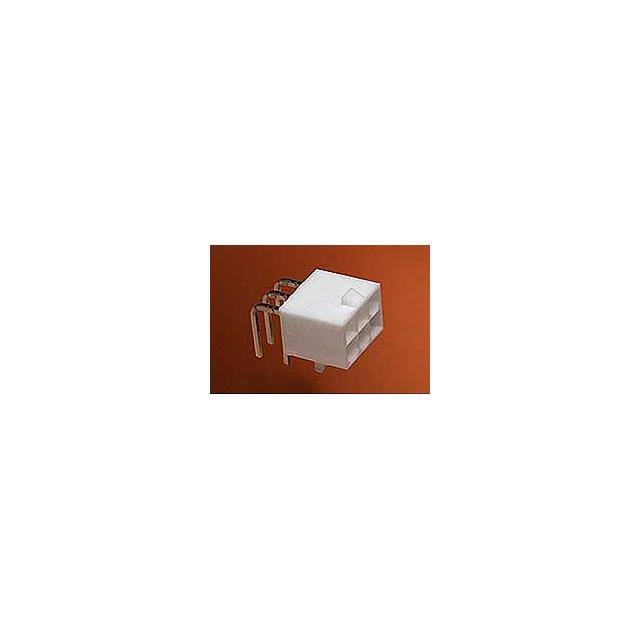

50-34-8569

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting :

Through Hole

Max Operating Temperature :

105 °C

Halogen Free :

Low Halogen

Mounting Style :

Through Hole

Termination Method :

Solder

Pitch :

4.2 mm

Housing Color :

Natural

Number of Positions :

2

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Product Height (mm) :

19.4(mm)

Pitch (mm) :

4.2(mm)

RoHS :

Compliant

Package :

Box

Number of Circuits :

2

Number of Contact Rows :

2

Number of Contacts :

2(POS)

Base/Housing Material :

Nylon

Mount :

Through Hole

Body Orientation :

RIGHT ANGLE

Operating Temperature :

-40 to 105 °C

Contact Plating :

Tin

Type :

Shrouded Header

Country of Origin :

MX

Current Rating :

8 A

Voltage Rating Max :

600V

Product Status :

Active

Min Operating Temperature :

-40 °C

Operating Temperature Max Deg. C :

105C

Operating Temp Range :

-40C to 105C

Contact Material :

Brass

Product Diameter (mm) :

Not Required(mm)

Number of Terminals :

2

Current Rating (Max) :

13/Contact(A)

Termination :

Solder

Number of Ports :

1(Port)

Operating Temperature Min Deg. C :

-40C

Number of Rows :

1

Series :

*

Housing Material :

Nylon

Packaging :

Bag

Voltage Rating :

600 V

Gender :

Header

Orientation :

Right Angle, Vertical

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Glow Wire Compliant :

Non-Compliant
