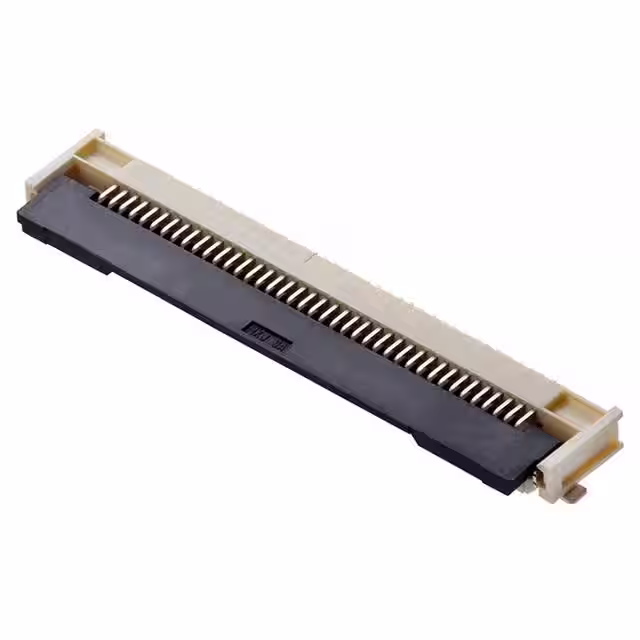

505110-2196
Or copy the link below:
- Mfr.Part #
- 505110-2196
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 05 FPC ZIF BTM CONT EMBT PKG 21C
- Stock
- 21,000
- In Stock ：
- 21,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Housings
- Number of Contact Rows :
- 1
- FFC, FCB Thickness :
- 0.30mm
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Mounting Type :
- Surface Mount, Right Angle
- Packaging :
- Tape and Reel
- Type :
- FFC/FPC CONNECTOR
- Operating Temperature :
- -40°C ~ 150°C
- Series :
- Easy-On FD19 505110
- Number of Contacts :
- 21(POS)
- Connector/Contact Type :
- Contacts, Bottom
- Maximum Operating Temperature :
- + 150 C
- Mounting Angle :
- RIGHT ANGLE
- Voltage Rating Max :
- 50V
- Material Flammability Rating :
- UL94 V-0
- Actuator Type :
- Flip
- Locking Feature :
- Flip Lock
- Current Rating (Amps) :
- 0.5A
- Product Type :
- FFC and FPC Connectors
- Product Length (mm) :
- 16(mm)
- Actuator Color :
- Black
- Product Depth (mm) :
- 5.3(mm)
- Product Height (mm) :
- 1.9(mm)
- Termination :
- Solder
- Body Orientation :
- RIGHT ANGLE
- Minimum Operating Temperature :
- - 40 C
- Contact Plating :
- Gold Over Nickel
- Product Status :
- Active
- Contact Finish Thickness :
- 1.97µin (0.050µm)
- Mating Cycles :
- 20
- Termination Method :
- Solder
- Brand :
- Molex
- Base Product Number :
- 505110
- Flammability Rating :
- UL 94 V-0
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Product Category :
- FFC and FPC Connectors
- Housing Color :
- Beige
- Pitch :
- 0.020" (0.50mm)
- Wire/Cable Type :
- FFC/FPC
- Current Rating (Max) :
- 0.5/Contact(A)
- Number of Positions :
- 21
- Mounting Style :
- Surface Mount
- Current Rating :
- 0.5 A
- Height Above Board :
- 0.075" (1.90mm)
- Contact Gender :
- F
- Voltage Rating :
- 50V
- Flat Flex Type :
- FFC, FPC
- Insulation Resistance :
- 50 mOhms
- Pitch (mm) :
- 0.5(mm)
- Subcategory :
- FFC and FPC Connectors
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Location :
- Bottom Contact
- Contact Material :
- COPPER ALLOY
- Manufacturer :
- Molex
- Contact Resistance Max :
- 40(mohm)
- Orientation :
- RIGHT ANGLE
- Termination Style :
- SMD/SMT
- Product :
- Connectors
- Package :
- Digi-Reel?
- Contact Finish :
- Gold
- Operating Temp Range :
- -40C to 150C
- Cable End Type :
- Straight, Tabbed
- Datasheets
- 505110-2196
Easy-On FD19 505110 Series FFC, FPC Contacts, Bottom Tape and Reel 0.020" (0.50mm) Solder 21 Positions Surface Mount, Right Angle Gold -40°C ~ 150°C 0.5A
5051102196 Overview
Surface Mount, Right Angle is the mounting type of the device.We pack the product in a Tape and Reel case.This is from the Easy-On FD19 505110 Series.-40°C ~ 150°C Operating Temperature is the default.
5051102196 Features
Easy-On FD19 505110 series
5051102196 Applications
There are a lot of Molex
5051102196 FFC, FPC (Flat Flexible) Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
