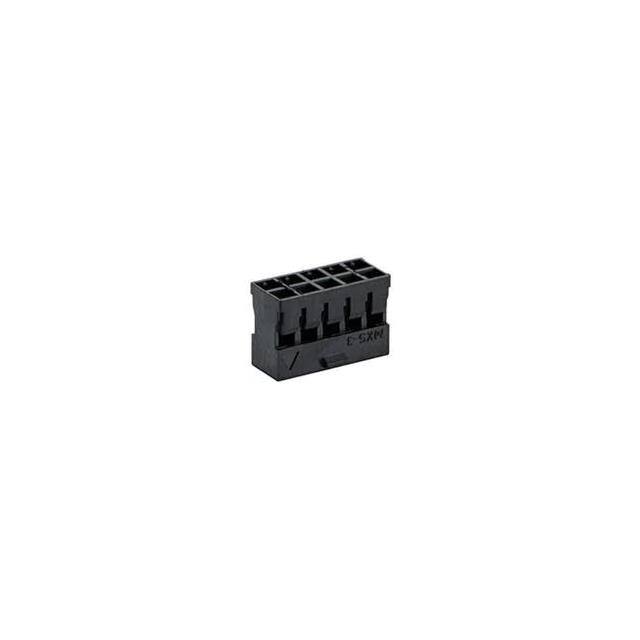

51110-3451

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Content :

1pc(s)

Polarization Key :

POLARIZED KEY

Mixed Contacts :

No

Housing Color :

Black

RoHS :

Details

Product Category :

Headers and Wire Housings

Mounting Style :

Cable Mount / Free Hanging

Operating Temp Range :

-40C to 105C

Reference Standard :

UL

Number of Contacts :

34(POS)

Packaging :

Bag

Contact Gender :

Socket (Female)

Contact Style :

SQ PIN-SKT

Product Height (mm) :

7(mm)

Insulation Resistance :

1000000000 Ω

Additional Feature :

MILLI-GRID, COMPATIBLE CONTACTS: 50394-8051; 50394-8052, POLARIZED

Gender :

RCP

Tradename :

Milli-Grid

Product Depth (mm) :

7(mm)

Number of Positions :

34 Position

Housing Material :

Polyester

Number of Contact Rows :

2

Body Depth :

0.276 inch

Product Length (mm) :

34.2(mm)

Reach Compliance Code :

Compliant

Number of Rows :

2 Row

Contact Material :

-

Product Status :

Active

DIN Conformance :

No

Product Type :

Headers and Wire Housings

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body Breadth :

0.189 inch

Mating Contact Pitch :

0.079 inch

Mounting Option 1 :

LOCKING

Mounting Type :

CABLE

Manufacturer :

Molex

Pitch (mm) :

2(mm)

Reliability :

COMMERCIAL

Filter Feature :

No

Product :

Wire Housings

UL Flammability Code :

94V-0

Termination Style :

Crimp

Package :

Bulk

Option :

GENERAL PURPOSE

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Application :

Signal, Wire-to-Board

MIL Conformance :

No

Housing Gender :

FEMALE

Total Number of Contacts :

34

Termination Type :

Crimp

Manufacturer part # :

511103451

Maximum Operating Temperature :

+ 105 C

Minimum Operating Temperature :

- 40 C

Brand :

Molex

Type :

Molex MOL Power and Signal Sol.

Body Orientation :

Straight

Insulator Color :

Black

Series :

51110

Mating Contact Row Spacing :

0.079 inch

Contact Resistance :

40 mΩ

Subcategory :

Headers and Wire Housings

Body/Shell Style :

Receptacle

Connector Type :

BOARD CONNECTOR

Pitch :

2 mm
