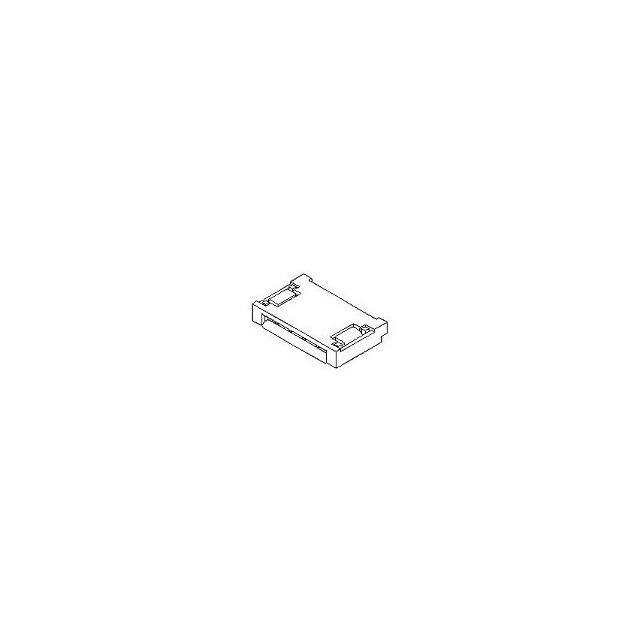

51281-2494

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Housing Material :

LIQUID CRYSTAL POLYMER

Min. temperature :

-20°C

Termination Type :

Non-ZIF

Board contact surface :

Tin

Gender :

FEMALE

Minimum Operating Temperature :

-20°C

Number of Rows :

1

CS :

0.5mm

Pitch :

0.5mm

Total number of pins :

24

Current Rating (Max) :

0.5/Contact(A)

RoHS Status :

RoHS Compliant

No. of rows :

1

RoHS-compliant :

yes

Contact Plating :

Gold Over Nickel

Termination Method :

Solder

Mounting Type :

Surface Mount

Body Orientation :

RIGHT ANGLE

Voltage Rating :

50 V

Contact Gender :

SKT

Nominal voltage :

50V

Connection :

SMT

Current Rating :

500mA

Product Length (mm) :

14.1(mm)

Actuator Type :

Non-ZIF

Nominal current - rounded value :

500mA

Housing Color :

Natural

Content :

3000pc(s)

Max. temperature :

+85°C

Connector contact surface :

Gold

Contact Material :

Phosphor Bronze

Voltage Rating Max :

50V

Manufacturer part # :

512812494

Pitch (mm) :

0.5(mm)

Nominal current :

0.5A

Number of Contacts :

24(POS)

Product Depth (mm) :

4.05(mm)

Product Height (mm) :

1.2(mm)

Mounting Style :

Surface Mount

Packaging type :

Tape on Full reel

Maximum Operating Temperature :

+85°C

Number of Contact Rows :

1

Orientation :

RIGHT ANGLE

Operating Temp Range :

-20C to 85C

Type :

Molex MOL Micro Solutions

Wire/Cable Type :

FFC/FPC

Packaging :

Bag-packed

Insertion Force :

Non-ZIF
