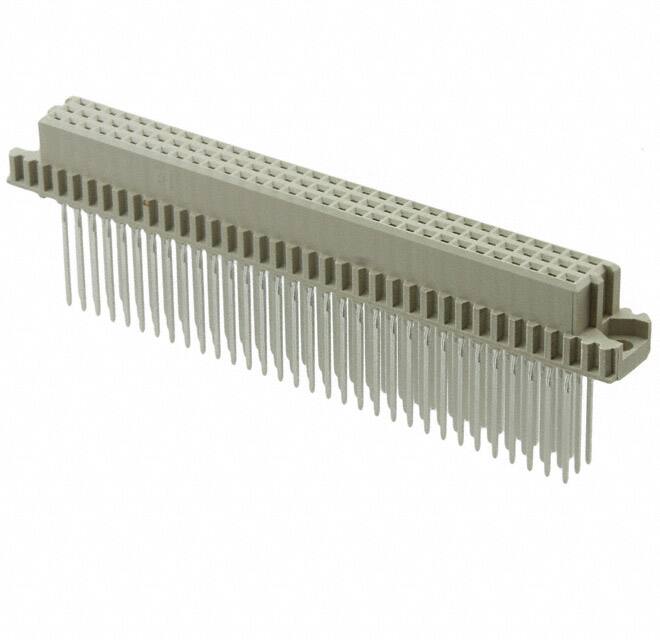

5148059-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Mating Contact Pitch :

0.1 inch

Number Of PCB Rows :

3

Termination Style :

Press Fit

Product :

Receptacles

Number of Rows :

3

Body Depth :

0.453 inch

Brand Name :

TE Connectivity

PCB Contact Row Spacing :

2.54 mm

RoHS :

Details

Product Height (mm) :

11.51(mm)

Mounting Style :

Straight

Insulation Resistance :

1000000000000 Ω

Number of Positions :

96 Position

Contact Gender :

FEMALE

Current Rating :

1.5 A

Name of Rows Loaded :

A,B,C

Body Breadth :

0.417 inch

Contact Material :

COPPER ALLOY

Body/Shell Style :

Receptacle

Contact Resistance :

15 mΩ

Body Orientation :

Straight

Mixed Contacts :

No

Current Rating (Max) :

1.5/Contact(A)

IEC Conformance :

No

Pitch :

2.5400 mm

Factory Lead Time :

21 Weeks

Insertion Force-Max :

.9452 N

Mounting Angle :

Straight

Type :

DIN 41612

Number of Contacts :

96 POS

Mounting Type :

BOARD

Termination Type :

Press Fit

Mating Contact Row Spacing :

0.1 inch

Termination Method :

Press Fit

Reliability :

COMMERCIAL

Product Type :

DIN 41612 Connectors

Mounting Option 1 :

LOCKING

Mounting :

Through Hole

Voltage Rating Max :

250VAC

Total Number of Contacts :

96

Product Length (mm) :

93.98(mm)

PCB Contact Pattern :

RECTANGULAR

Housing Color :

Gray

Series :

5148059

Terminal Pitch :

2.54 mm

Reference Standard :

UL, CSA

Brand :

TE Connectivity / AMP

Insulator Color :

Gray

Dielectric Withstanding Voltage :

1000VAC V

Terminal Length :

0.669 inch

Pbfree Code :

yes

Contact Style :

SQ PIN-SKT

Packaging :

Box

Pitch (mm) :

2.54(mm)

Base/Housing Material :

Polymer

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Operating Temp Range :

-65C to 125C

Connector Type :

BOARD EURO CONNECTOR

DIN Conformance :

yes

ECCN Code :

EAR99

Rated Current (Signal) :

1.5 A

Filter Feature :

No

Gender :

Receptacle

Housing Material :

Polymer

HTS Code :

8536.69.40.40

Withdrawl Force-Min :

.139 N

Product Length :

93.98 mm

Number of Contact Rows :

3

Product Category :

DIN 41612 Connectors

Option :

GENERAL PURPOSE

Reach Compliance Code :

Compliant

Contact Plating :

Tin
