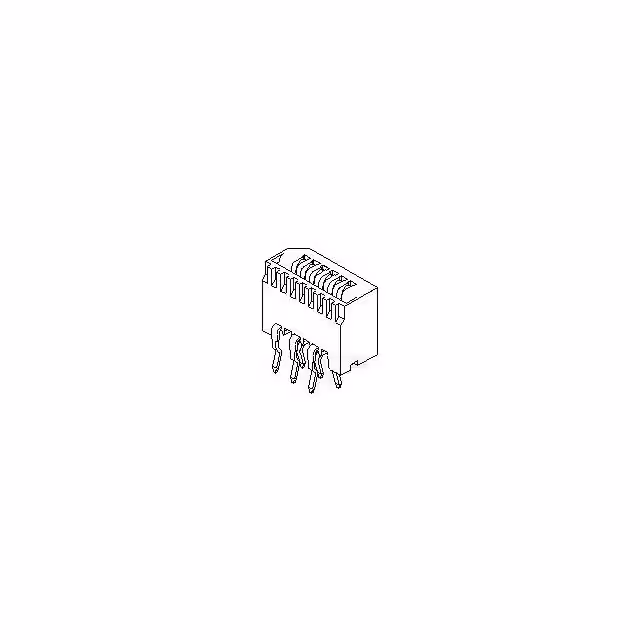

52045-1745

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

ECCN Code :

EAR99

Mating Contact Pitch :

0.049 inch

Mounting Style :

Through Hole

Mounting Type :

BOARD

Filter Feature :

No

Total Number of Contacts :

17

Pbfree Code :

yes

Number of Contacts :

17(POS)

Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Type :

FFC/FPC CONNECTOR

Reliability :

COMMERCIAL

Reach Compliance Code :

Compliant

Termination Type :

Solder

DIN Conformance :

No

Insulation Resistance :

500000000 Ω

PCB Contact Row Spacing :

2.4892 mm

Product Status :

Active

Body Orientation :

Straight

Reference Standard :

UL

Packaging :

Tray

Terminal Length :

0.138 inch

Number Of PCB Rows :

2

Series :

*

PCB Contact Pattern :

STAGGERED

Body Depth :

0.315 inch

Product Depth (mm) :

5.6(mm)

Body Breadth :

0.201 inch

Contact Material :

Phosphor Bronze

Termination Method :

Solder

UL Flammability Code :

94V-0

Subcategory :

Headers and Edge Type Connectors

Option :

GENERAL PURPOSE

Voltage Rating Max :

200V

Insulator Color :

Gray

Housing Material :

Polyester

Pitch (mm) :

1.25(mm)

MIL Conformance :

No

Rated Current (Signal) :

1 A

Connector Type :

FFC/FPC CONNECTOR

Contact Gender :

SKT

HTS Code :

8536.69.40.51

Product Height (mm) :

8(mm)

Number of Contact Rows :

1

Additional Feature :

STAGGERED CONFIGURATION

Mixed Contacts :

No

Contact Resistance :

30 mΩ

Contact Plating :

Tin

Housing Color :

Gray

IEC Conformance :

No

Product Length (mm) :

24.65(mm)

Package :

Box

Operating Temp Range :

-40C to 85C

Manufacturer :

Molex

Contact Resistance Max :

30(mohm)

Current Rating (Max) :

1/Contact(A)

Terminal Pitch :

1.25 mm
