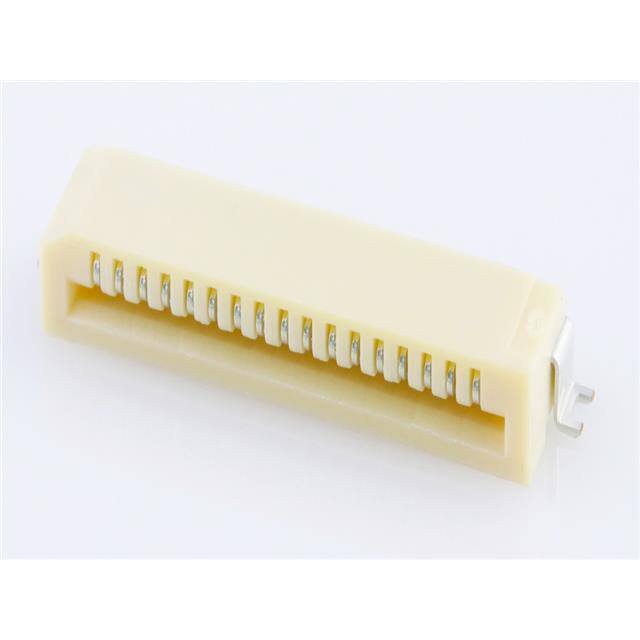

52793-1770
Or copy the link below:
- Mfr.Part #
- 52793-1770
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.0 FFC NON ZIFHSGASSYSMT 17CKTE
- Stock
- 16,876
- In Stock ：
- 16,876
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Product Length (mm) :
- 23.3(mm)
- Mixed Contacts :
- No
- Body Depth :
- 0.189 inch
- Package :
- Box
- Connector Type :
- FFC/FPC CONNECTOR
- Additional Feature :
- ROHS,ELV COMPLIANT, TAPE PKG
- Housing Material :
- Polyphenylene
- REACH SVHC :
- No SVHC
- Dielectric Withstanding Voltage :
- 500VAC V
- Country of Origin :
- MY
- Subcategory :
- FFC and FPC Connectors
- Number of Contacts :
- 17(POS)
- HTS Code :
- 8536.69.40.51
- Number of Circuits :
- 17
- Product Type :
- FFC and FPC Connectors
- Product Height (mm) :
- 3.1(mm)
- Current Rating (Max) :
- 0.5/Contact(A)
- IEC Conformance :
- No
- Reference Standard :
- UL
- Contact Style :
- BELLOWED TYPE
- Product Depth (mm) :
- 6.8(mm)
- Pitch (mm) :
- 1(mm)
- MIL Conformance :
- No
- Contact Plating :
- Tin
- ECCN Code :
- EAR99
- Reliability :
- COMMERCIAL
- Number Of PCB Rows :
- 1
- Factory Lead Time :
- 16 Weeks
- Termination Method :
- Solder
- Mounting :
- Surface Mount
- Option :
- GENERAL PURPOSE
- Type :
- FFC Connector
- Body Orientation :
- RIGHT ANGLE
- Wire/Cable Type :
- FFC/FPC
- Termination :
- SMD/SMT
- Material :
- Bronze
- Terminal Pitch :
- 1 mm
- Operating Temperature :
- -20 to 85 °C
- Board Mounting Option :
- FITTING NAIL
- Stackable :
- No
- Voltage Rating Max :
- 50V
- Contact Location :
- Top
- Total Number of Contacts :
- 17
- Product Status :
- Active
- Maximum Operating Temperature :
- + 85 C
- Mounting Angle :
- RIGHT ANGLE
- Number of Contact Rows :
- 1
- Contact Material :
- Phosphor Bronze
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- Minimum Operating Temperature :
- - 20 C
- Number of Rows :
- 1
- Product :
- Board Mount
- Insulation Resistance :
- 100000000 Ω
- Mounting Option 1 :
- LOCKING
- RoHS :
- Compliant
- PCB Contact Pattern :
- RECTANGULAR
- Manufacturer :
- Molex
- Series :
- 52793
- Termination Style :
- SMD/SMT
- Pbfree Code :
- yes
- Contact Gender :
- Socket
- Number of Positions :
- 17
- Reach Compliance Code :
- Unknown
- Contact Resistance :
- 30 mΩ
- Brand :
- Molex
- Durability :
- 10 Cycles
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- Product Category :
- FFC and FPC Connectors
- Packaging :
- Tape and Reel
- Mount :
- Surface Mount
- Contact Pattern :
- RECTANGULAR
- Insulator Color :
- Beige
- Body Breadth :
- 0.122 inch
- Termination Type :
- Surface Mount
- Mounting Style :
- Surface Mount
- ELV :
- Compliant
- Mating Contact Pitch :
- 0.039 inch
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Rated Current (Signal) :
- 0.5 A
- Withdrawl Force-Min :
- .0834 N
- Voltage Rating :
- 50 V
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- BOARD
- DIN Conformance :
- No
- Pitch :
- 1.0000 mm
- Actuator Type :
- Non-ZIF
- Operating Temp Range :
- -20C to 85C
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 500 mA
- Datasheets
- 52793-1770
52793 Series Tape and Reel 1.0000 mm SMD/SMT 17 Positions BOARD -20 to 85 °C
527931770 Overview
The packaging contains FFC/FPC CONNECTOR.This device is mounted in the BOARD position.It has been determined that a Tape and Reel case is necessary to package the product.There is a product in the 52793 Series.To name a few, there is also ROHS,ELV COMPLIANT, TAPE PKG.Part Surface Mount is mounted to the part.It consists of circuits with a 17 value.As a result, the device runs at -20 to 85 °C Operating Temperature.
527931770 Features
52793 series
527931770 Applications
There are a lot of Molex
527931770 FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
