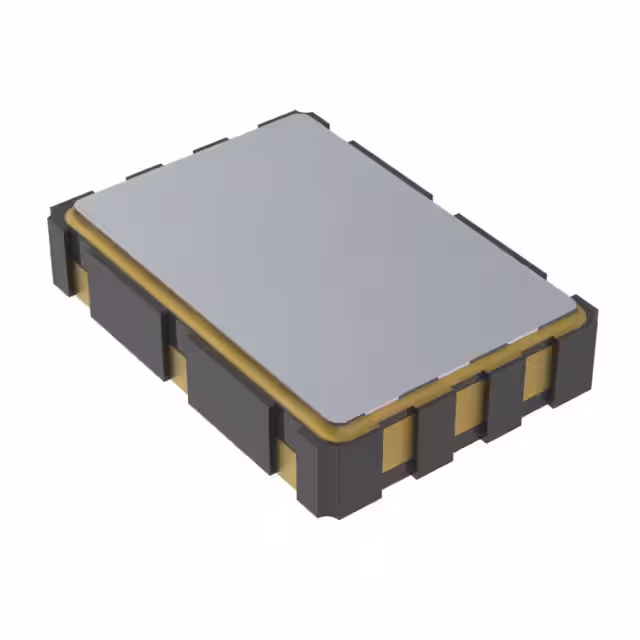

530JA24M0000DGR

Manufacturer :

Skyworks Solutions, Inc.

Product Category :

Oscillators

JESD-609 Code :

e4

Number of Terminations :

6

Function :

Enable/Disable

Output :

CMOS

Pbfree Code :

yes

Current - Supply (Disable) (Max) :

75mA

Mount :

Surface Mount

Physical Dimension :

7.0mm x 5.0mm x 1.85mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2004

Size / Dimension :

0.276Lx0.197W 7.00mmx5.00mm

Radiation Hardening :

No

Base Resonator :

Crystal

Height Seated (Max) :

0.071 1.80mm

Supply Voltage :

1.8V

Current - Supply (Max) :

88mA

Operating Supply Voltage :

2.5V

Power Supplies :

1.8V

Load Capacitance :

15pF

Factory Lead Time :

6 Weeks

Voltage - Supply :

1.8V

Additional Feature :

Tape and Reel

Packaging :

Tape and Reel (TR)

Symmetry-Max :

55/45%

Operating Temperature :

-40°C~85°C

Operating Frequency :

24MHz

Package / Case :

6-SMD, No Lead

Contact Plating :

Gold

Type :

XO (Standard)

Frequency :

24MHz

RoHS Status :

RoHS Compliant

Frequency Stability :

±50ppm

Mounting Type :

Surface Mount

Series :

Si530
