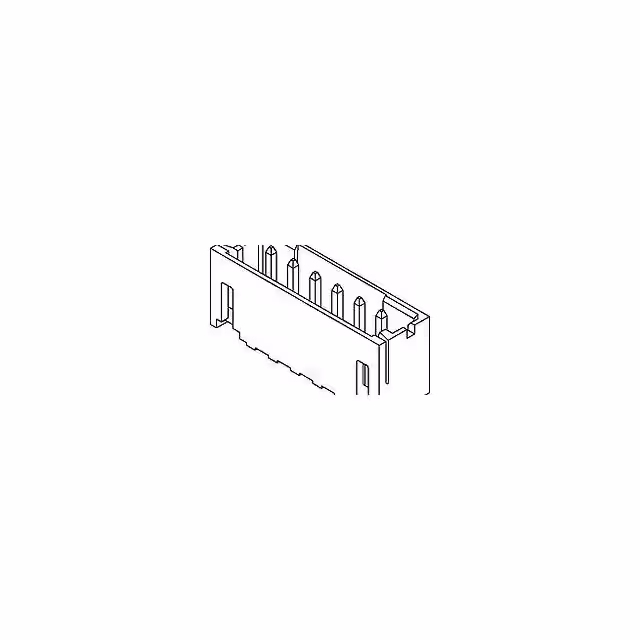

53324-0360

Manufacturer :

Molex

Product Category :

Headers, Male Pins

JESD-609 Code :

e3

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Subcategory :

Headers and Edge Type Connectors

Body/Shell Style :

PLUG

Terminal Length :

0.138 inch

Filter Feature :

No

Body Depth :

0.236 inch

DIN Conformance :

No

Termination Type :

Solder

Board Mounting Option :

PEG

UL Flammability Code :

94V-0

Package :

Box

Reference Standard :

UL

Mixed Contacts :

No

Manufacturer :

Molex

Terminal Pitch :

2 mm

Mating Contact Pitch :

0.079 inch

Mounting Option 1 :

LOCKING

Product Status :

Active

Reach Compliance Code :

Compliant

Mounting Type :

BOARD

Contact Pattern :

RECTANGULAR

Total Number of Contacts :

3

Number Of PCB Rows :

1

Insulator Color :

White

Connector Type :

BOARD CONNECTOR

Contact Finish Termination :

Tin (Sn)

Series :

*

MIL Conformance :

No

Additional Feature :

RoHS Compliant

Mounting Style :

Straight

Contact Gender :

Male

Pbfree Code :

yes

Body Breadth :

0.179 inch

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Contact Material :

Brass

Contact Style :

SQ PIN-SKT

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL
