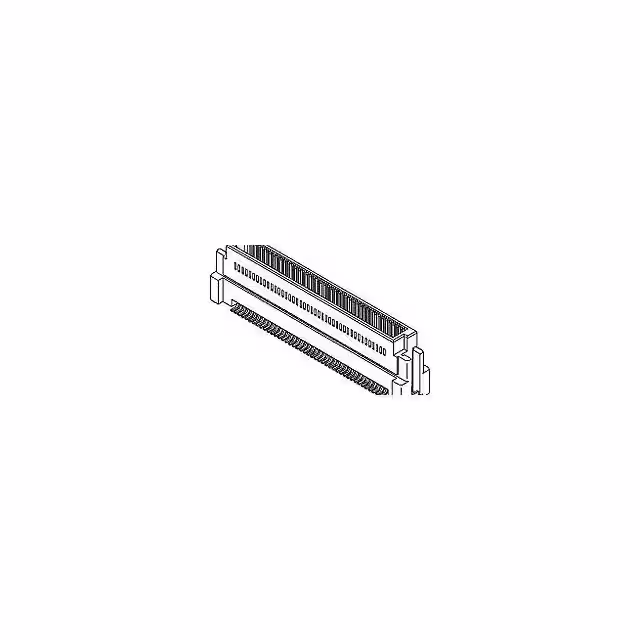

53553-1679

Manufacturer :

Molex

Product Category :

Unclassified

Number Of PCB Rows :

2

Housing Color :

Natural

Body/Shell Style :

PLUG

Product Depth (mm) :

5.2(mm)

Product Height (mm) :

9(mm)

Series :

*

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Pitch :

0.6400 mm

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Termination :

Solder

Contact Material :

Brass

Connector Type :

BOARD STACKING CONNECTOR

Manufacturer :

Molex

Mounting Option 1 :

LOCKING

Dielectric Withstanding Voltage :

250VAC V

Mounting Style :

Surface Mount

Package :

Box

UL Flammability Code :

94V-0

Product Status :

Active

Body Breadth :

0.205 inch

Mounting Type :

BOARD

Polarization Key :

POLARIZED HOUSING

Factory Lead Time :

9 Weeks

ECCN Code :

EAR99

Body Orientation :

Straight

Base/Housing Material :

Thermoplastic

Reliability :

COMMERCIAL

Termination Method :

Solder

Plating Thickness :

10u inch

Number of Contact Rows :

2

Insertion Force-Max :

.6672 N

Reach Compliance Code :

Compliant

Packaging :

Tube

MIL Conformance :

No

Product Length :

57.67 mm

Insulator Color :

Brown

Durability :

50 Cycles

RoHS :

Compliant

Number of Circuits :

160

Contact Plating :

Gold

Contact Style :

SQ PIN-SKT

Radiation Hardening :

No

DIN Conformance :

No

Withdrawl Force-Min :

.1112 N

Total Number of Contacts :

160

Board Mounting Option :

SOLDER HOLDING POSTS

PCB Contact Pattern :

RECTANGULAR

Mounting :

Surface Mount

Reference Standard :

UL

Contact Gender :

Male

Current Rating (Max) :

0.5/Contact(A)

Pitch (mm) :

0.64(mm)

Gender :

PLUG

Product Length (mm) :

57.67(mm)

Orientation :

Vertical

Subcategory :

Headers and Edge Type Connectors

Number of Contacts :

160(POS)

Mixed Contacts :

No

Type :

Board to Board

HTS Code :

8536.69.40.40

Operating Temperature :

-55 to 85 °C

Terminal Pitch :

0.635 mm

Voltage Rating Max :

100V

Plating :

Tin

JESD-609 Code :

e3

Filter Feature :

No

PCB Contact Row Spacing :

4.191 mm

Country of Origin :

JP

Body Depth :

0.354 inch

Pbfree Code :

yes

Rated Current (Signal) :

0.5 A

Number of Rows :

2

Operating Temp Range :

-55C to 105C

Insulation Resistance :

1000000000 Ω

Mating Contact Pitch :

0.025 inch

Termination Type :

Surface Mount

Option :

GENERAL PURPOSE

Contact Resistance Max :

70(mohm)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
