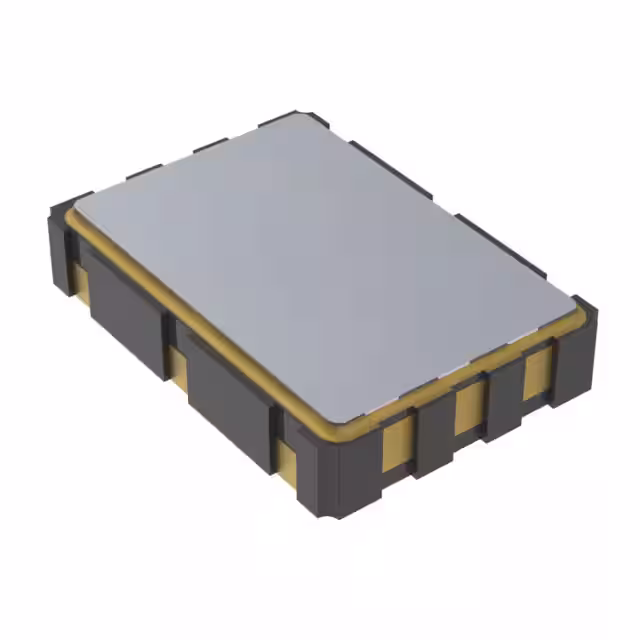

535AB000305DGR
Or copy the link below:
- Mfr.Part #
- 535AB000305DGR
- Manufacturer
- Skyworks Solutions, Inc.
- Package / Case
- 6-SMD, No Lead
- Datasheet
- Download
- Description
- XTAL OSC XO 156.2578MHZ LVPECL
- Stock
- 44,695
- In Stock ：
- 44,695
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Skyworks Solutions, Inc.
- Product Category :
- Oscillators
- JESD-609 Code :
- e4
- Factory Lead Time :
- 6 Weeks
- Physical Dimension :
- 7.0mm x 5.0mm x 1.8mm
- Surface Mount :
- yes
- Operating Temperature :
- -40°C~85°C
- Fall Time-Max :
- 0.35ns
- Function :
- Enable/Disable
- Reach Compliance Code :
- Compliant
- Package / Case :
- 6-SMD, No Lead
- Frequency Stability :
- ±20ppm
- Terminal Finish :
- Gold (Au) - with Nickel (Ni) barrier
- Frequency :
- 156.2578MHz
- Series :
- Si535
- Rise Time-Max :
- 0.35ns
- Current - Supply (Max) :
- 121mA
- Supply Voltage :
- 3.3V
- Symmetry-Max :
- 55/45%
- Voltage - Supply :
- 3.3V
- Current - Supply (Disable) (Max) :
- 75mA
- Height Seated (Max) :
- 0.071 1.80mm
- RoHS Status :
- RoHS Compliant
- Output :
- LVPECL
- Mounting Type :
- Surface Mount
- Type :
- XO (Standard)
- Base Resonator :
- Crystal
- Size / Dimension :
- 0.276Lx0.197W 7.00mmx5.00mm
- Packaging :
- Tape and Reel (TR)
- Operating Frequency :
- 156.2578MHz
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 535AB000305DGR
535AB000305DGR datasheet pdf and Oscillators product details from Silicon Labs stock available at
