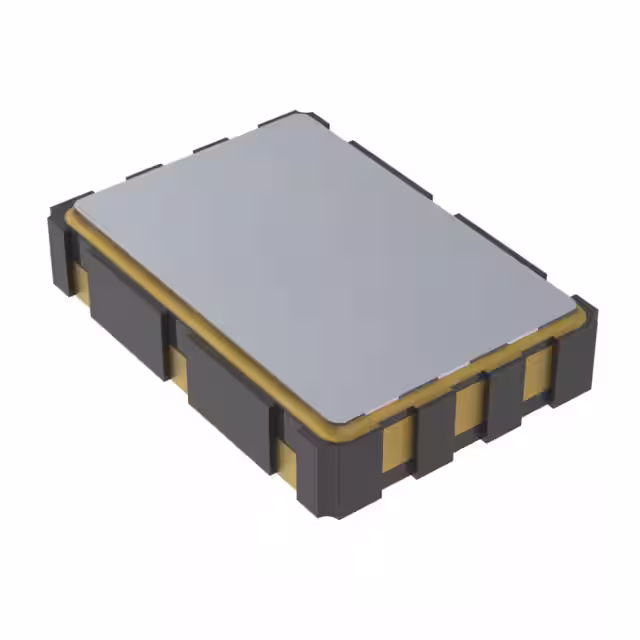

536BB000305DG
Or copy the link below:
- Mfr.Part #
- 536BB000305DG
- Manufacturer
- Skyworks Solutions, Inc.
- Package / Case
- 6-SMD, No Lead
- Datasheet
- Download
- Description
- XTAL OSC XO 156.2578MHZ LVDS SMD
- Stock
- 10,620
- In Stock ：
- 10,620
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Skyworks Solutions, Inc.
- Product Category :
- Oscillators
- Reach Compliance Code :
- Compliant
- Physical Dimension :
- 7.0mm x 5.0mm x 1.8mm
- Factory Lead Time :
- 6 Weeks
- Frequency Stability :
- ±20ppm
- Type :
- XO (Standard)
- Operating Temperature :
- -40°C~85°C
- Height Seated (Max) :
- 0.071 1.80mm
- Symmetry-Max :
- 55/45%
- Supply Voltage :
- 3.3V
- Output :
- LVDS
- JESD-609 Code :
- e4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Function :
- Enable/Disable
- Terminal Finish :
- Gold (Au) - with Nickel (Ni) barrier
- Fall Time-Max :
- 0.35ns
- Rise Time-Max :
- 0.35ns
- Surface Mount :
- yes
- Base Resonator :
- Crystal
- Size / Dimension :
- 0.276Lx0.197W 7.00mmx5.00mm
- Voltage - Supply :
- 3.3V
- Mounting Type :
- Surface Mount
- Current - Supply (Max) :
- 98mA
- Package / Case :
- 6-SMD, No Lead
- Series :
- Si536
- RoHS Status :
- RoHS Compliant
- Operating Frequency :
- 156.2578MHz
- Packaging :
- Tape and Reel (TR)
- Current - Supply (Disable) (Max) :
- 75mA
- Frequency :
- 156.2578MHz
- Datasheets
- 536BB000305DG
536BB000305DGR datasheet pdf and Oscillators product details from Silicon Labs stock available at
