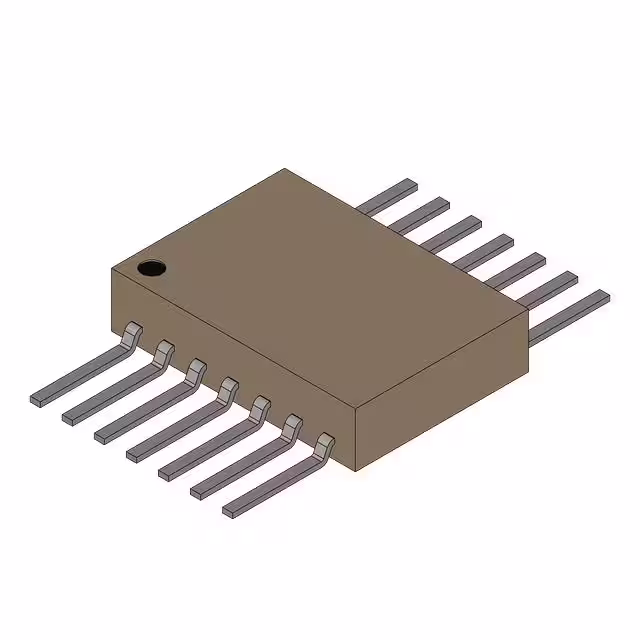

54LS03FMQB

Manufacturer :

National Semiconductor

Product Category :

Gates and Inverters

Number of Functions :

4

Qualification Status :

Not Qualified

Output Characteristics :

OPEN-COLLECTOR

Temperature Grade :

Military

Package :

Bulk

Terminal Position :

Dual

Width :

6.35 mm

Family :

LS

Terminal Form :

Flat

Logic IC Type :

NAND Gate

Supply Voltage-Min (Vsup) :

4.5 V

Propagation Delay (tpd) :

15 ns

Pin Count :

14

Terminal Pitch :

1.27 mm

Package Shape :

RECTANGULAR

Supply Voltage-Max (Vsup) :

5.5 V

Number of Terminals :

14

Length :

9.5885 mm

Surface Mount :

yes

Product Status :

Active

Reach Compliance Code :

Unknown

HTS Code :

8542.39.00.01

Number of Inputs :

2

Seated Height-Max :

2.032 mm

JESD-30 Code :

R-GDFP-F14
