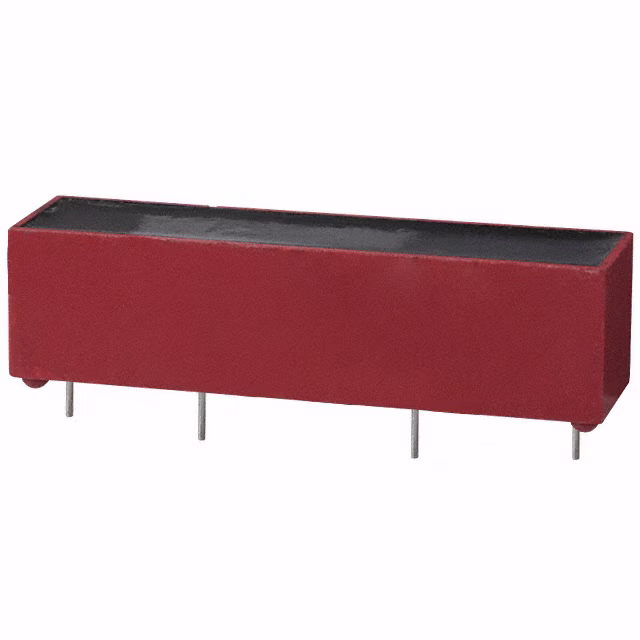

5503-12-1

Manufacturer :

Coto Technology

Product Category :

Reed Relays

Insulation Resistance :

10000000000 Ω

Coil Current(DC)-Max :

0.069 A

Release Time :

3 ms

Dielectric Strength Between Coil and Contacts :

10000 Vrms

Coil Resistance :

175 Ω

Body Height :

19.05 mm

Relay Function :

SPST

Terminal Finish :

Matte Tin (Sn)

Contact Resistance :

200 mΩ

Coil Voltage(DC)-Max :

15 V

Contact Voltage(DC)-Max :

3500 V

Body Breadth :

18.03 mm

Surface Mount :

No

Body Length or Diameter :

71.12 mm

Input Switching Control Type :

Random

Relay Type :

DRY REED RELAY

Relay Action :

Momentary

Sealing :

HERMETICAL

Terminal Length :

0.005 inch

Physical Dimension :

71.12mm X 18.03mm X 19.05mm

Relay Form :

1 FORM A

Contact/Output Supply Type :

AC/DC

ECCN Code :

EAR99

Electrical Life :

100000000 Cycle(s)

Contact Voltage(AC)-Max :

3500 V

Coil Operate Voltage(DC) :

9 V

Dielectric Strength Between Open Contacts :

7500 Vrms

Operate Time :

3 ms

Number of Terminals :

4

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Manufacturer :

Coto Technology USA

Termination Type :

Solder

Coil Power :

823 mW

Reach Compliance Code :

Compliant

JESD-609 Code :

e3

Contact Current(DC)-Max :

3 A

Contact Current(AC)-Max :

3 A

Coil Release Voltage(DC) :

1 V

Coil/Input Supply Type :

DC
