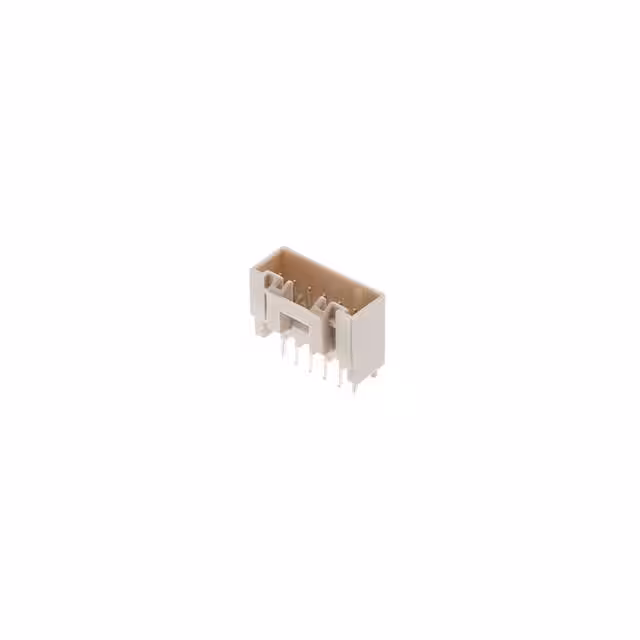

55755-0519

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Angle :

Straight

Insulation Resistance :

1000000000 Ω

Voltage Rating :

250 V

ECCN Code :

EAR99

Flammability Rating :

UL 94 V-0

Number of Positions :

5 Position

Polarization Key :

POLARIZED HOUSING

Termination Post Length :

3.3 mm

Mating Post Length :

3.65 mm

Orientation :

Vertical

Body Breadth :

0.256 inch

Mounting Style :

Through Hole

Contact Plating :

Tin

Termination Style :

Solder Pin

Body Depth :

0.352 inch

Mounting Type :

BOARD

Mating Contact Pitch :

0.079 inch

Accessory Type :

-

Packaging :

Tray

Application :

Signal, Wire-to-Board

Connector Type :

BOARD CONNECTOR

Product :

Headers

Durability :

30 Cycles

Contact Type :

-

Contact Material :

Tin

Maximum Operating Temperature :

+ 105 C

Minimum Operating Temperature :

- 40 C

Reach Compliance Code :

Compliant

Reference Standard :

UL

Type :

SHROUDED

Housing Material :

Nylon

Product Status :

Active

Number Of PCB Rows :

1

Insulator Color :

Natural

Reliability :

COMMERCIAL

Series :

55755

RoHS :

Details

Plating Thickness :

40u inch

Dielectric Withstanding Voltage :

1400VAC V

Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Contact Style :

SQ PIN-SKT

Package :

Box

Number of Rows :

1 Row

JESD-609 Code :

e3

Tradename :

MicroTPA

Termination Type :

Solder

Housing Color :

Natural

Pitch :

2 mm

Total Number of Contacts :

5

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

Contact Finish Termination :

Tin (Sn)

Current Rating :

2.5 A

Contact Gender :

Pin (Male)

Terminal Length :

0.13 inch

Contact Resistance :

20 mΩ

Terminal Pitch :

2.0066 mm

Rated Current (Signal) :

2.5 A
