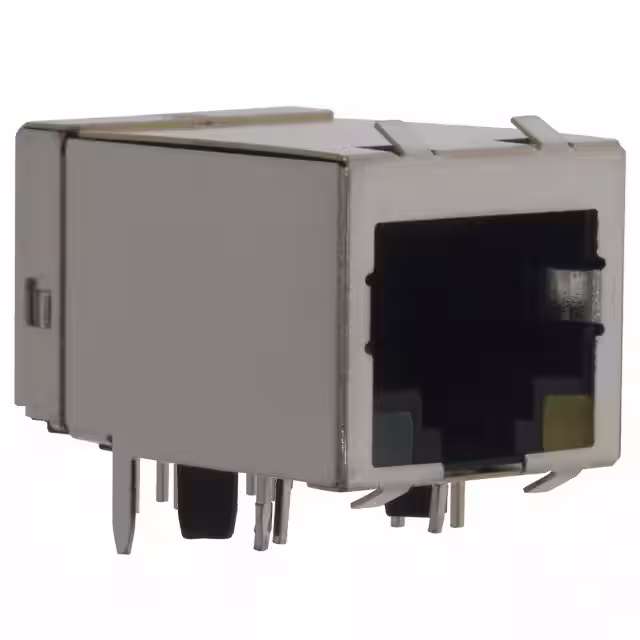

569564-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Body/Shell Style :

Receptacle

Insulation Resistance :

500000000 Ω

Termination :

Solder

Number of Rows :

1

Withdrawl Force-Min :

20.016 N

Reliability :

COMMERCIAL

Keyed :

No

Body Depth :

0.84 inch

Housing Material :

Nylon

Number of Contacts :

8

Plating Thickness :

50u inch

Rated Current (Signal) :

1.5 A

Board Mounting Option :

COMPLIANT BOARDLOCK and PEGS

Insertion Force-Max :

20.016 N

Contact Gender :

Male

Tail Length :

2.79 mm

Height :

13.64 mm

Contact Resistance :

30 mΩ

Shielding :

Shielded

Body Breadth :

0.537 inch

Orientation :

RIGHT ANGLE

Shell Finish :

TIN/LEAD OVER COPPER

Insulator Color :

Black

Element Configuration :

Single

Connector Type :

TELECOM AND DATACOM CONNECTOR

Reach Compliance Code :

Compliant

Pitch :

2.54 mm

Max Operating Temperature :

85 °C

Durability :

750 Cycles

Dielectric Withstanding Voltage :

1000VAC V

Additional Feature :

POS1=GREEN, POS 2=YELLOW LED

Contact Style :

TELCOM, MODULAR

RoHS :

Non-Compliant

Contact Material :

Phosphor Bronze

Terminal Pitch :

2.54 mm

Number of Ports :

1

Contact Plating :

Gold

Termination Type :

Solder

Direction :

Down

Shell Material :

COPPER ALLOY

Mounting Option 1 :

LOCKING

Min Operating Temperature :

-40 °C

Total Number of Contacts :

8

Mounting Type :

BOARD

Terminal Length :

0.11 inch

Preloaded :

yes

Number of Positions :

8

Max Voltage Rating (AC) :

150 V

ECCN Code :

EAR99

Reference Standard :

CSA, UL

HTS Code :

8536.69.40.30

Mounting Style :

RIGHT ANGLE

Lead Free :

Contains Lead

PCB Contact Pattern :

STAGGERED

Color :

Black

Flammability Rating :

UL94 V-0

Mount :

Through Hole
