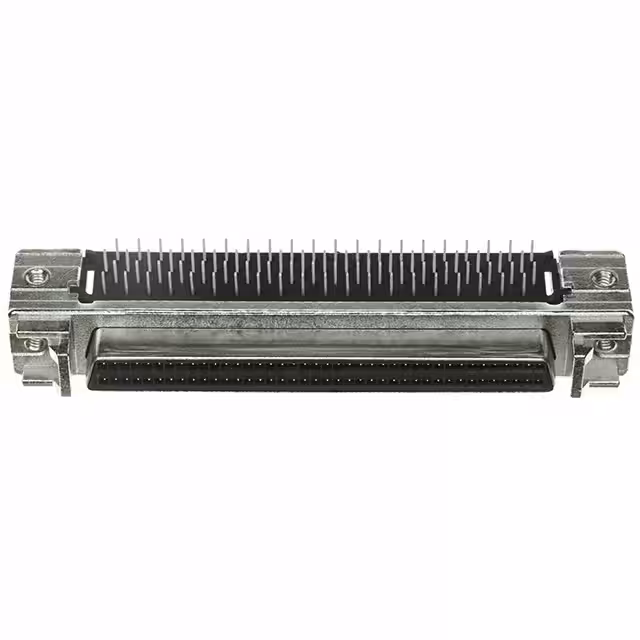

5787190-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Product Height (mm) :

10.31(mm)

Shell Material :

CARBON STEEL

Termination Method :

Solder

Pitch :

2.5400 mm

Current Rating :

1/Contact(A)

JESD-609 Code :

e3

Base/Housing Material :

Thermoplastic

UL Flammability Code :

94V-0

Additional Feature :

AMPLIMITE, SHIELDED

Operating Temperature :

-55 to 105 °C

Termination Type :

Solder

Termination Style :

Solder

Number of Contacts :

80(POS)

Tradename :

AMPLIMITE

Product Type :

D-Sub Connectors - Standard Density

Mounting Angle :

RIGHT ANGLE

Type :

D-Subminiature

Product Category :

D-Sub Standard Connectors

Mixed Contacts :

No

Product Depth (mm) :

16.87(mm)

Filter Feature :

No

Number of Terminals :

80

Operating Voltage (Max) :

30VAC

Option :

GENERAL PURPOSE

Number of Rows :

2 Row

Brand Name :

AMP

Operating Temp Range :

-55C to 105C

Contact Plating :

Gold

Subcategory :

D-Sub Connectors

Brand :

TE Connectivity

RoHS :

Details

Empty Shell :

No

Rad Hardened :

No

Connector Type :

TELECOM AND DATACOM CONNECTOR

MIL Conformance :

No

Packaging :

Tube

IEC Conformance :

No

Total Number of Contacts :

80

Mounting Style :

RIGHT ANGLE

Contact Gender :

FEMALE

Body Orientation :

RIGHT ANGLE

Reach Compliance Code :

Compliant

Mounting Type :

BOARD AND PANEL

Contact Material :

NOT SPECIFIED

Plug / Receptacle :

SKT

Number of Ports :

1(Port)

Shell Plating :

Nickel over Copper

HTS Code :

8536.69.40.30

Number of Positions :

80 Position

Pbfree Code :

yes

Factory Lead Time :

9 Weeks

Housing Material :

Thermoplastic

ECCN Code :

EAR99

Gender :

Receptacle

Contact Finish Termination :

Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

Product Length (mm) :

71.5(mm)

Number of Contact Rows :

2

Contact Pitch (mm) :

1.27(mm)

Product Length :

71.5 mm

DIN Conformance :

No

Body/Shell Style :

Receptacle

Mounting :

Through Hole

Shell Finish :

Nickel
