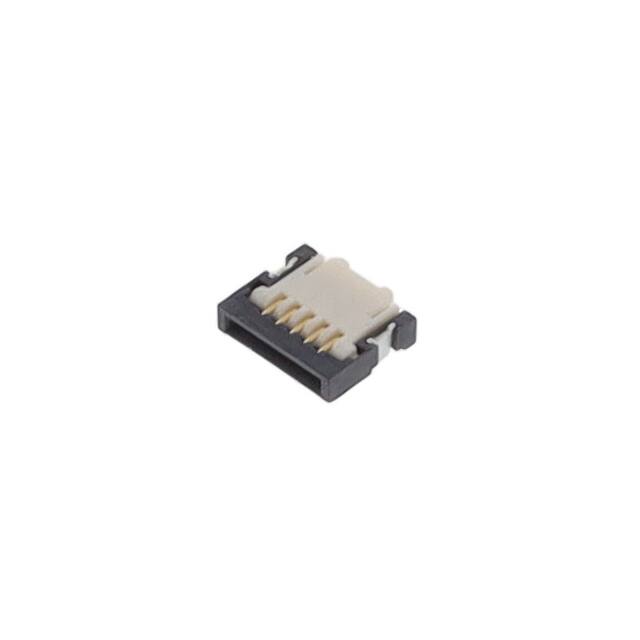

59453-052110ECHLF
Or copy the link below:
- Mfr.Part #
- 59453-052110ECHLF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC TOP 5POS 0.50MM R/A
- Stock
- 215
- In Stock ：
- 215
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Housing Material :
- Thermoplastic, Glass Filled, Halogen Free
- Series :
- SFVL
- RoHS Status :
- RoHS Compliant
- Reference Standard :
- UL
- FFC, FCB Thickness :
- 0.20mm
- Orientation :
- RIGHT ANGLE
- Height Above Board :
- 0.035 0.88mm
- Connector/Contact Type :
- Contacts, Top
- Contact Finish :
- Gold
- Flat Flex Type :
- FPC
- Termination :
- Solder
- Operating Temperature :
- -55°C~85°C
- Contact Style :
- BELLOWED TYPE
- IEC Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Reliability :
- COMMERCIAL
- Insertion Force-Max :
- ZIF N
- Number of Positions :
- 5
- DIN Conformance :
- No
- Voltage - Rated :
- 50V
- Mating Cycles :
- 10
- Current Rating (Amps) :
- 0.4A
- Current Rating :
- 400mA
- Actuator Color :
- White
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Number of Rows :
- 1
- UL Flammability Code :
- 94V-0
- PCB Contact Pattern :
- RECTANGULAR
- Cable End Type :
- Notched
- Contact Pattern :
- RECTANGULAR
- Option :
- GENERAL PURPOSE
- Contact Gender :
- FEMALE
- Factory Lead Time :
- 12 Weeks
- Actuator Material :
- Thermoplastic, Glass Filled, Halogen Free
- Total Number of Contacts :
- 5
- Filter Feature :
- No
- Housing Color :
- Black
- Mounting Type :
- Surface Mount, Right Angle
- Dielectric Withstanding Voltage :
- 200VAC V
- Pitch :
- 0.020 0.50mm
- Number Of PCB Rows :
- 1
- Locking Feature :
- Flip Lock, Backlock
- Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 100MOhm
- Mixed Contacts :
- No
- Mount :
- Surface Mount
- Withdrawl Force-Min :
- ZIF N
- Packaging :
- Tape and Reel (TR)
- Contact Location :
- Top
- Contact Resistance :
- 30mOhm
- Datasheets
- 59453-052110ECHLF
SFVL Series FPC Contacts, Top Tape & Reel (TR) 0.020 0.50mm Solder 5 Positions Surface Mount, Right Angle Gold -55°C~85°C 0.4A
59453-052110ECHLF Overview
There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number SFVL belongs to the SFVL Series.In many ways, it is more powerful due to its Solder Retention, Zero Insertion Force (ZIF) feature.There is a Surface Mount mount on the part.This device operates at a temperature of -55°C~85°C.
59453-052110ECHLF Features
SFVL series
59453-052110ECHLF Applications
There are a lot of Amphenol ICC (FCI)
59453-052110ECHLF FFC, FPC (Flat Flexible) Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
