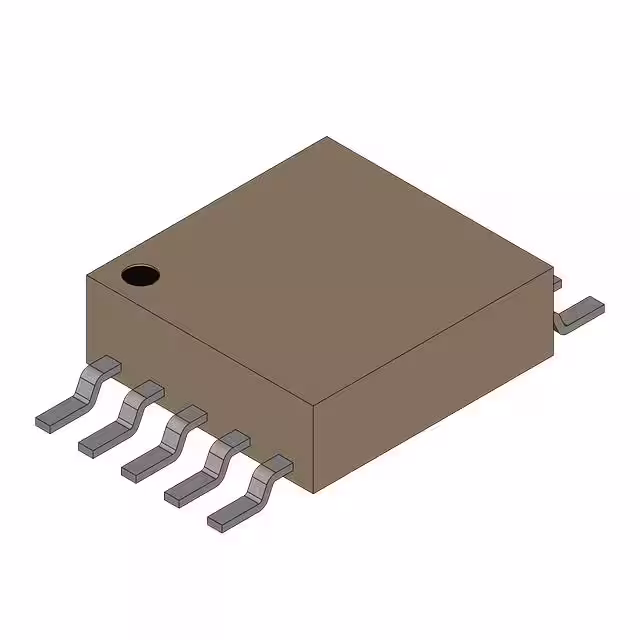

5962-0051203QHA

Manufacturer :

Texas Instruments

Product Category :

Instrumentation, OP Amps, Buffer Amps

Max Operating Temperature :

125°C

Qualification Status :

Qualified

Terminal Position :

Dual

Width :

6.35mm

Power Dissipation :

675mW

Voltage Gain :

109dB

Min Dual Supply Voltage :

1.35V

Max Supply Voltage :

6V

Input Offset Current-Max (IIO) :

0.007μA

Length :

6.35mm

Amplifier Type :

Operational Amplifier

Number of Functions :

1

Power Dissipation-Max :

675mW

Wideband :

No

RoHS Status :

RoHS Compliant

Mount :

Surface Mount

Current - Input Bias :

14nA

Number of Channels :

1

Thickness :

1.65mm

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Temperature Grade :

Military

Low-Offset :

No

Programmable Power :

No

Input Offset Voltage (Vos) :

2mV

Low-Bias :

No

Average Bias Current-Max (IIB) :

0.075μA

Micropower :

No

Common Mode Rejection Ratio :

71 dB

Screening Level :

MIL-PRF-38535 Class Q

Max Dual Supply Voltage :

3V

Architecture :

VOLTAGE-FEEDBACK

Packing Method :

Tube

Lead Free :

Contains Lead

Frequency Compensation :

yes

Gain Bandwidth Product :

6.4MHz

Supply Current-Max :

0.65mA

Radiation Hardening :

No

Slew Rate :

1.6 V/µs

Min Operating Temperature :

-55°C

Number of Pins :

10

Height :

2.03mm

Pin Count :

10

Min Supply Voltage :

2.7V

Supply Voltage :

3V

ECCN Code :

EAR99

Terminal Form :

Flat

Unity Gain BW-Nom :

6400 kHz

Number of Terminations :

10
