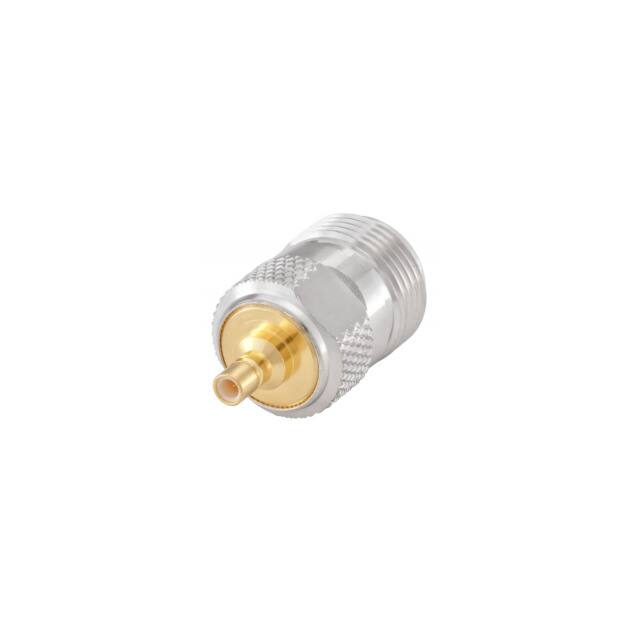

59S153-K00L5

Manufacturer :

Rosenberger

Product Category :

Coaxial Connector (RF) Adapters

Operating Temperature :

-55°C~155°C

Impedance :

50Ohm

Published :

2014

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Straight

Convert From (Adapter End) :

N Jack, Female Socket

Operating Frequency-Max :

4GHz

IEC Conformance :

No

DIN Conformance :

No

Convert To (Adapter End) :

SMB Plug, Male Pin

Mounting Type :

Free Hanging (In-Line)

Adapter Series :

N to SMB

RoHS Status :

RoHS Compliant

Filter Feature :

No

Option :

GENERAL PURPOSE

Coupling Type :

SNAP-THREADED

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Reference Standard :

UL

Reliability :

COMMERCIAL

Body Finish :

Gold; Nickel

Factory Lead Time :

13 Weeks

Insulation Material :

POLYTETRAFLUORO ETHYLENE

Center Contact Material :

BERYLLIUM COPPER

Panel Mount :

No

Insertion Loss :

0.1dB

Mating Cycles :

500

Conversion Type :

Between Series

Center Contact Plating :

Gold

Fastening Type :

Snap-On, Snap-On

Frequency (Max) :

4GHz

Body Material :

Brass

Center Gender :

Female to Male

Rated Current (Signal) :

1.5A

Contact Finish - Mating :

AU ON NI,AU ON NI

MIL Conformance :

No

Packaging :

Bulk

VSWR :

1.17

Adapter Type :

Plug to Jack
