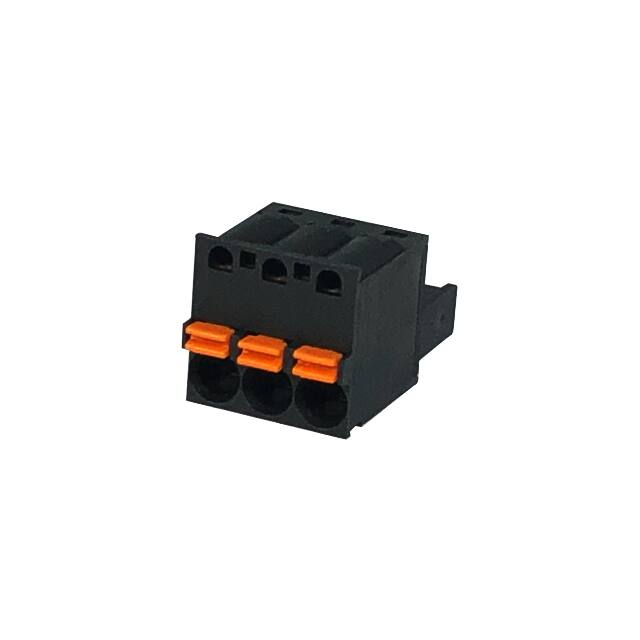

5ESDSR-03P-BK
Or copy the link below:
- Mfr.Part #
- 5ESDSR-03P-BK
- Manufacturer
- DINKLE Corporation USA
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS 5.00MM PID PLG
- Stock
- 500
- In Stock ：
- 500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- DINKLE Corporation USA
- Product Category :
- Headers, Plugs and Sockets
- Package :
- Bulk
- Current - UL :
- 10 A
- Wire Gauge or Range - mm² :
- 0.2-2.5mm²
- Current - IEC :
- 12A
- Color :
- Black
- Mounting Type :
- Free Hanging (In-Line)
- Operating Temperature :
- -40°C ~ 120°C
- Termination Style :
- Screwless - Leg Spring, Push-In Spring
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Series :
- 5ESDSR
- Features :
- Retention Latches
- Header Orientation :
- -
- Product Status :
- Active
- Voltage - UL :
- 300 V
- Voltage - IEC :
- 600 V
- Positions Per Level :
- 3
- Pitch :
- 0.197 (5.00mm)
- Contact Mating Finish :
- Tin
- Type :
- Plug, Female Sockets
- Number of Levels :
- 1
- Number of Positions :
- 3
- Datasheets
- 5ESDSR-03P-BK
