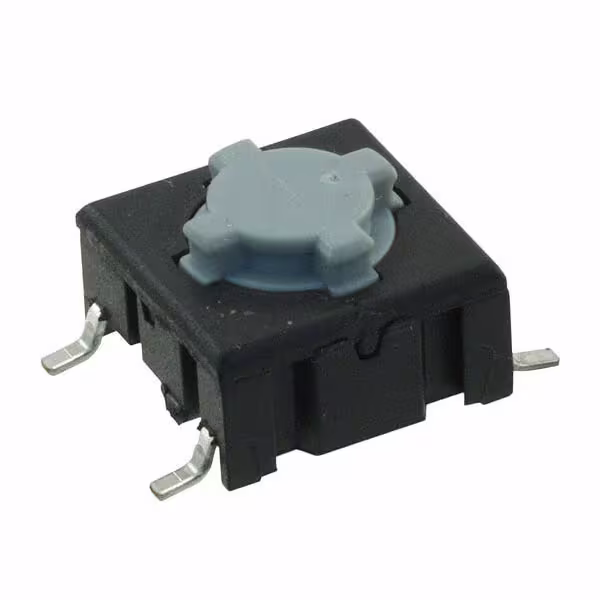

5ESH920

Manufacturer :

MEC switches

Product Category :

Tradename :

multimec

Minimum Operating Temperature :

- 40 C

Pole Throw Configuration :

SPST

Switch Function :

OFF - (ON)

Contact Form :

SPST

Power Rating :

-

Width :

10.3 mm

Switch Function Configuration :

OFF ON

IP Rating :

IP67

Product Height (mm) :

6.4(mm)

Length :

10.3 mm

Termination Style :

Gull Wing Lead

Operating Force :

2 N

Operating Temperature Range :

- 40 C to + 160 C

Product Length (mm) :

10.1(mm)

Contact Material :

Stainless Steel

Color :

Black

Itar Registered :

No

Voltage Rating (VDC) :

24(V)

Operating Temp Range :

-40C to 160C

Series :

5E

RoHS :

Details

Product :

Tactile Switch

Mounting Style :

SMD/SMT

Type :

Basic Switch

Product Depth (mm) :

14(mm)

Current Rating :

50 mA

Height :

6.4 mm

Actuator :

Round

Maximum Operating Temperature :

+ 160 C

Current Rating (Max) :

0.05(A)

Illumination Type :

Not Required

Actuator Style :

Button

Terminal Type :

Gull wing

Body Orientation :

Straight

ECCN :

EAR99

Mechanical Life :

10000000

Lamp Type :

LED
