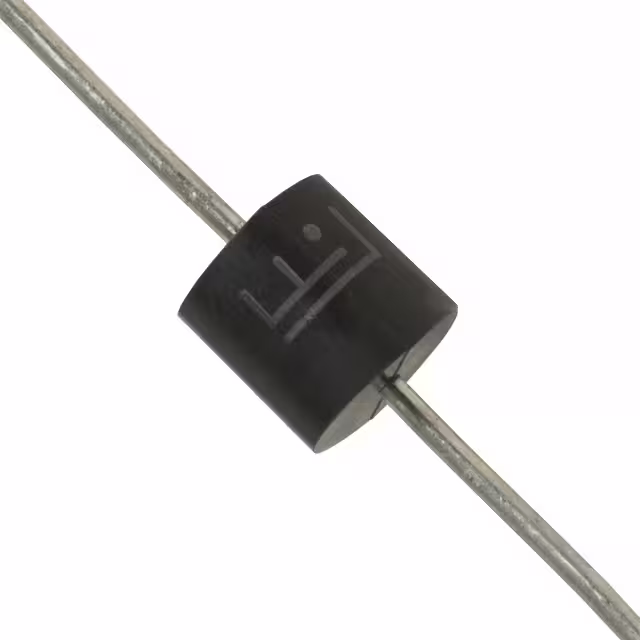

5KP30CA/B

Manufacturer :

YAGEO

Product Category :

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Non-rep Peak Rev Power Dis-Max :

5000W

Diode Element Material :

SILICON

Applications :

GENERAL PURPOSE

Peak Reflow Temperature (Cel) :

260

Peak Pulse Current :

105.4A

Number of Elements :

1

Peak Pulse Power :

5kW

Current - Peak Pulse (10/1000μs) :

105.4A

Polarity :

Bidirectional

Breakdown Voltage :

35.05V

Reverse Breakdown Voltage :

33.3V

Additional Feature :

UL RECOGNIZED

Breakdown Voltage-Max :

36.8V

Type :

Zener

Mounting Type :

Through Hole

Leakage Current :

20μA

Power Line Protection :

No

Pbfree Code :

No

Power Dissipation-Max :

8W

Voltage - Reverse Standoff (Typ) :

30V

Packaging :

Bulk

Clamping Voltage :

48.4V

RoHS Status :

ROHS3 Compliant

Configuration :

Single

Mount :

Through Hole

Operating Temperature :

-55°C~175°C TJ

Terminal Form :

Wire

Power - Peak Pulse :

5000W 5kW

ECCN Code :

EAR99

Published :

2014

Factory Lead Time :

17 Weeks

Terminal Finish :

Matte Tin (Sn)

JESD-609 Code :

e3

Test Current :

5mA

Case Connection :

Isolated

Package / Case :

P600, Axial

Number of Pins :

2

Number of Terminations :

2

Reverse Standoff Voltage :

30V

Series :

5KP

Time@Peak Reflow Temperature-Max (s) :

40

Pin Count :

2
