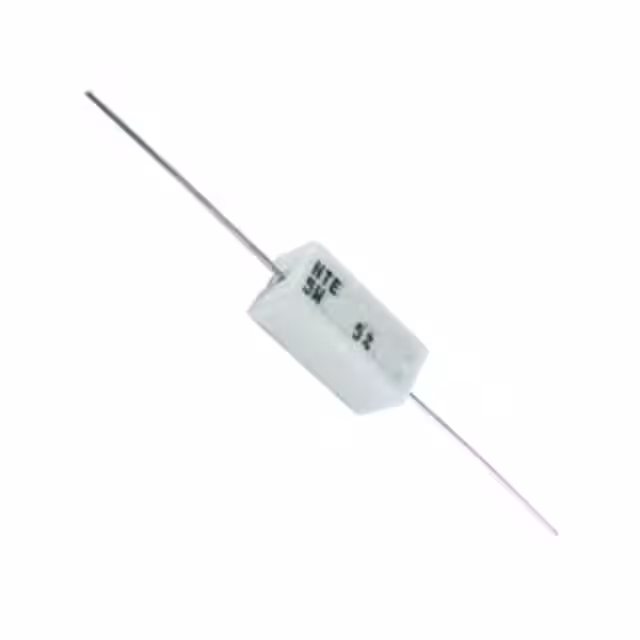

5W047

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Package Type :

Axial Lead

Package Shape :

RECTANGULAR PACKAGE

Manufacturer :

NTE Electronics

Rated Temperature :

70 °C

Rated Power Dissipation (P) :

5 W

Lead Length :

1.5

Surface Mount :

No

Package Height :

9.65 mm

Technology :

Wire Wound

Height - Seated (Max) :

-

Failure Rate :

-

Package Length :

22 mm

Resistor Type :

FIXED RESISTOR

Terminal Shape :

Wire

Reach Compliance Code :

Unknown

Composition :

Wirewound

Product Status :

Active

HTS Code :

8533.21.00.80

Lead Diameter :

0.036

Power (Watts) :

5W

Number of Terminations :

2

Subcategory :

Fixed Resistors

Package Width :

9.65 mm

Size / Dimension :

0.380" Square x 0.866" L (9.65mm x 22.00mm)

Size Code :

8738

Working Voltage :

550 V

Temperature Coefficient :

±300ppm/°C

Wattage :

5

Features :

-

Mounting Feature :

THROUGH HOLE MOUNT

Supplier Device Package :

Axial

Terminal Type :

Axial Leads

Series :

-

Number of Terminals :

2

Construction :

Wirewound

Operating Temperature :

-55°C ~ 155°C

ECCN Code :

EAR99

Package / Case :

Axial

Tolerance :

±5%

Resistance :

47 Ohms

Package :

Bag
