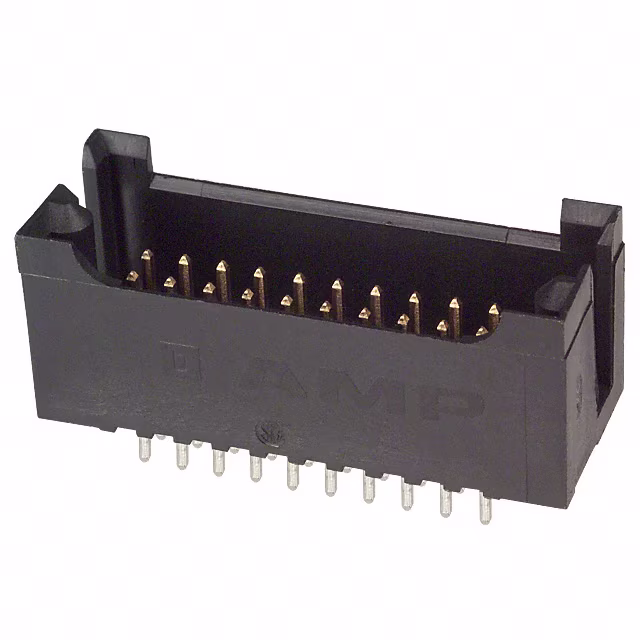

6-102567-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Min Operating Temperature :

-65 °C

Series :

AMPMODU Mod II

ECCN Code :

EAR99

Mating Contact Pitch :

0.1 inch

Tail Length :

4.572 mm

Max Operating Temperature :

105 °C

Housing Material :

Thermoplastic

PCB Mount Retention :

Without

Contact Plating :

Gold

Gender :

Header

Tradename :

AMPMODU

Base/Housing Material :

Thermoplastic

Pitch :

2.5400 mm

Depth :

13.08 mm

Contact Finish Thickness - Mating :

381 nm

Max Voltage Rating (AC) :

250 V

Mounting :

Through Hole

DIN Conformance :

No

Rated Current (Signal) :

3 A

Length :

35.05 mm

Lead Length :

4.572 mm

Termination Type :

Solder

Mounting Type :

BOARD

PCB Thickness :

1.397 mm

Termination Style :

Solder Pin

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

Contact Shape :

Square

Product Length :

35.05 mm

Contact Current Rating :

3 A

Plating Thickness :

15u inch

Mating Contact Row Spacing :

0.1 inch

Brand Name :

AMP

PCB Mount Alignment :

Without

Product Depth (mm) :

13.08(mm)

Insulator Color :

Black

Polarization Key :

POLARIZED HOUSING

Type :

Shrouded Header

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Product :

Headers

Mixed Contacts :

No

Dielectric Withstanding Voltage :

750VAC V

Connector Type :

BOARD CONNECTOR

Mounting Option 1 :

LOCKING

Lead Free :

Lead Free

Insulation Resistance :

1000000000 Ω

Operating Supply Voltage :

250 V

Terminal Pitch :

2.54 mm

PCB Mounting Orientation :

Vertical

Mating Alignment :

With

Contact Resistance :

12 mΩ

Mount :

Through Hole

Contact Material :

COPPER ALLOY

Number of Rows :

2 Row

Product Category :

Headers and Wire Housings

Mounting Angle :

Straight

Row Spacing :

2.54 mm

Plating :

Gold

Application :

Board-to-Board

Body Depth :

0.55 inch

Circuit Application :

Signal

RoHS :

Details

Termination Method :

Solder

Option :

GENERAL PURPOSE

Number of Contact Rows :

2

Product Type :

Headers and Wire Housings

Voltage Rating :

250 VAC

Pbfree Code :

yes

Brand :

TE Connectivity

PCB Contact Pattern :

RECTANGULAR

Voltage Rating Max :

250VAC

PCB Contact Row Spacing :

2.54 mm

Maximum Operating Temperature :

+ 105 C

Housing Color :

Black

Factory Lead Time :

5 Weeks

Number of Positions :

20 Position

IEC Conformance :

No

Number Of PCB Rows :

2

Termination :

Solder

Contact Gender :

Male

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code :

94V-0

Product Length (mm) :

35.05(mm)

Total Number of Contacts :

20

Reach Compliance Code :

Compliant

Operating Temperature :

-65 to 105 °C

Additional Feature :

AMPMODU

Body Breadth :

0.515 inch

Approvals :

CSA

Reference Standard :

UL, CSA

Color :

Black

Number of Contacts :

20(POS)

Minimum Operating Temperature :

- 65 C

Radiation Hardening :

No

Operating Temp Range :

-65C to 105C

Lifecycle Status :

Production (Last Updated: 1 week ago)

Pitch (mm) :

2.54(mm)

Height :

13.97 mm

Body/Shell Style :

Receptacle

Contact Style :

SQ PIN-SKT

Orientation :

Vertical

Schedule B :

8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/85

MIL Conformance :

No

Product Height (mm) :

13.97(mm)

Terminal Length :

0.18 inch

Mounting Style :

Straight

Contact Resistance Max :

12(mohm)

Flammability Rating :

UL94 V-0

Current Rating :

3 A

Current Rating (Max) :

3/Contact(A)

Body Orientation :

Straight

Voltage Rating (AC) :

250 V

Packaging :

Tube

HTS Code :

8536.69.40.40

Filter Feature :

No
