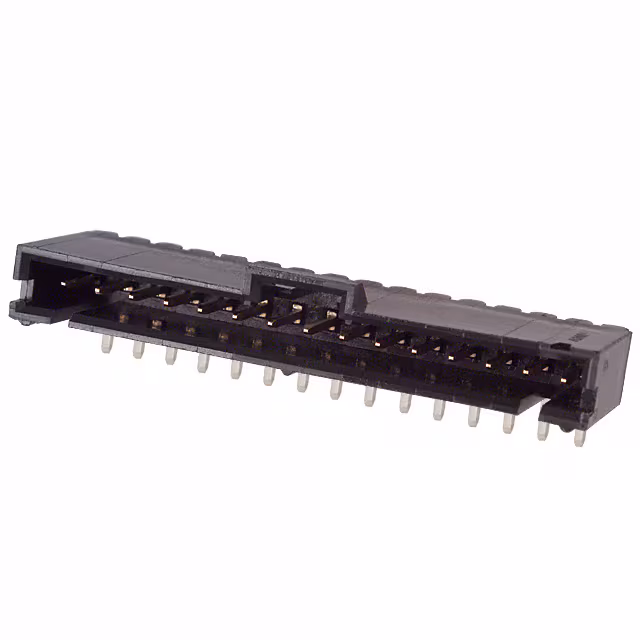

6-103635-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Series :

AMPMODU MTE

Subcategory :

Headers and Wire Housings

Product Type :

Headers and Wire Housings

Mounting Angle :

RIGHT ANGLE

Product Category :

Headers and Wire Housings

Mating Post Length :

5.842 mm

PCB Mounting Orientation :

RIGHT ANGLE

Total Number of Contacts :

15

Flammability Rating :

UL 94 V-0

Brand :

TE Connectivity

Lifecycle Status :

Production (Last Updated: 6 days ago)

UL Flammability Code :

94V-0

Contact Finish Thickness - Mating :

381 nm

Product Length :

40.64 mm

Row Spacing :

2.54 mm

DIN Conformance :

No

Housing Material :

Thermoplastic

Connector Type :

BOARD CONNECTOR

Height :

13.59 mm

Operating Temperature :

-65 to 105 °C

Pitch :

2.5400 mm

Mount :

Through Hole

Termination Type :

Solder

Brand Name :

AMP

Application :

Board-to-Board, Wire-to-Board

Additional Feature :

LATCHED, SHROUDED

Approvals :

CSA

Mating Retention :

With

Terminal Pitch :

2.54 mm

Contact Finish Termination :

Tin (Sn)

Mounting Type :

BOARD

Option :

GENERAL PURPOSE

Mounting :

Through Hole

PCB Mount Alignment :

Without

Insulation Resistance :

5000 MOhms

Color :

Black

Contact Gender :

Male

Number of Rows :

1 Row

Contact Shape :

Square

Pbfree Code :

yes

Termination Style :

Solder Pin

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Product :

Headers

Plating Thickness :

2.54 µm

Contact Material :

Brass

Length :

40.64 mm

Contact Resistance :

15 mΩ

Base/Housing Material :

Thermoplastic

Filter Feature :

No

Maximum Operating Temperature :

+ 105 C

Mounting Style :

RIGHT ANGLE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Mating Length :

5.842 mm

IEC Conformance :

No

Termination Method :

Solder

Gender :

Header

Depth :

13.59 mm

Tradename :

AMPMODU

Termination :

Crimp

ELV :

Compliant

Type :

SHROUDED

Reach Compliance Code :

Compliant

Housing Color :

Black

RoHS :

Details

Packaging :

Tube

JESD-609 Code :

e3

Number of Positions :

15 Position

PCB Mount Retention :

Without

Number of Contacts :

15

Min Operating Temperature :

-65 °C

REACH SVHC :

No SVHC

Tail Length :

3.3 mm

Max Operating Temperature :

105 °C

Orientation :

RIGHT ANGLE

Body Orientation :

RIGHT ANGLE

Contact Style :

Pin

Current Rating :

3 A

MIL Conformance :

No

Contact Current Rating :

3 A

Plating :

Gold

Mixed Contacts :

No

Lead Free :

Lead Free

Minimum Operating Temperature :

- 65 C

Radiation Hardening :

No

Contact Plating :

Gold
