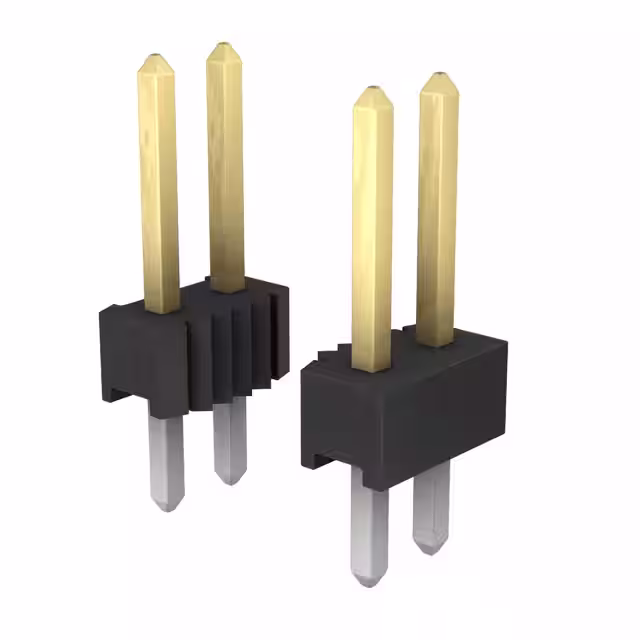

6-146256-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Termination Post Length :

3.05 mm

Contact Plating :

Gold

Mixed Contacts :

No

Mating Contact Pitch :

0.1 inch

Rated Current (Signal) :

3 A

Number of Positions :

30 Position

DIN Conformance :

No

Length :

37.69 mm

Reference Standard :

UL, CSA

Dielectric Withstanding Voltage :

1050VAC V

Body Orientation :

Straight

Reach Compliance Code :

Compliant

PCB Thickness :

1.5748 mm

Maximum Operating Temperature :

+ 105 C

Insulation Resistance :

5000000000 Ω

Flammability Rating :

UL 94 V-0

Product Type :

Headers and Wire Housings

Depth :

4.88 mm

Body Depth :

0.09 inch

Mating Contact Row Spacing :

0.1 inch

Min Operating Temperature :

-65 °C

Orientation :

Vertical

Termination Style :

Solder Pin

Number of Rows :

2 Row

Contact Material :

Phosphor Bronze

HTS Code :

8536.69.40.40

Product Category :

Headers and Wire Housings

JESD-609 Code :

e3

PCB Contact Pattern :

RECTANGULAR

Radiation Hardening :

No

Brand Name :

AMP

Housing Color :

Black

PCB Contact Row Spacing :

2.54 mm

Max Operating Temperature :

105 °C

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Mating Post Length :

5.84 mm

Type :

Breakaway

Mounting Angle :

Straight

Mounting Type :

BOARD

Terminal Length :

0.12 inch

Application :

Board-to-Board

RoHS :

Details

High Temperature Housing :

yes

Contact Style :

SQ PIN-SKT

Packaging :

Bulk

ECCN Code :

EAR99

Tradename :

AMPMODU

Number of Contacts :

30

Gender :

Header

Product :

Headers

Total Number of Contacts :

30

Minimum Operating Temperature :

- 65 C

Factory Lead Time :

6 Weeks

Termination :

Through Hole

Operating Supply Voltage :

30 V

Current Rating :

3 A

Base/Housing Material :

Thermoplastic

Body/Shell Style :

Receptacle

Mounting Style :

Straight

Contact Finish Termination :

Matte Tin (Sn) - with Nickel (Ni) barrier

Keyed :

No

Product Length :

37.69 mm

Termination Type :

Solder

Body Breadth :

0.192 inch

Contact Pattern :

RECTANGULAR

Approvals :

CSA

Contact Shape :

Square

Row Spacing :

2.54 mm

Insulator Color :

Black

Reliability :

COMMERCIAL

Contact Current Rating :

3 A

Lead Length :

3.048 mm

Number Of PCB Rows :

2

Contact Mating Length :

5.842 mm

Brand :

TE Connectivity / AMP

Filter Feature :

No

Termination Method :

Solder

Contact Gender :

Male

Pbfree Code :

yes

MIL Conformance :

No

Mount :

Through Hole

Housing Material :

Thermoplastic

Option :

GENERAL PURPOSE

Connector Type :

BOARD CONNECTOR

Operating Temperature :

-65 to 105 °C

Color :

Black

IEC Conformance :

No

Pitch :

2.5400 mm

Lifecycle Status :

Production (Last Updated: 5 days ago)

PCB Mounting Orientation :

Vertical

ELV :

Compliant

Mounting :

Through Hole

Terminal Pitch :

2.54 mm

Series :

AMPMODU Mod II

Plating Thickness :

15u inch

High Speed Serial Data Connector :

No
