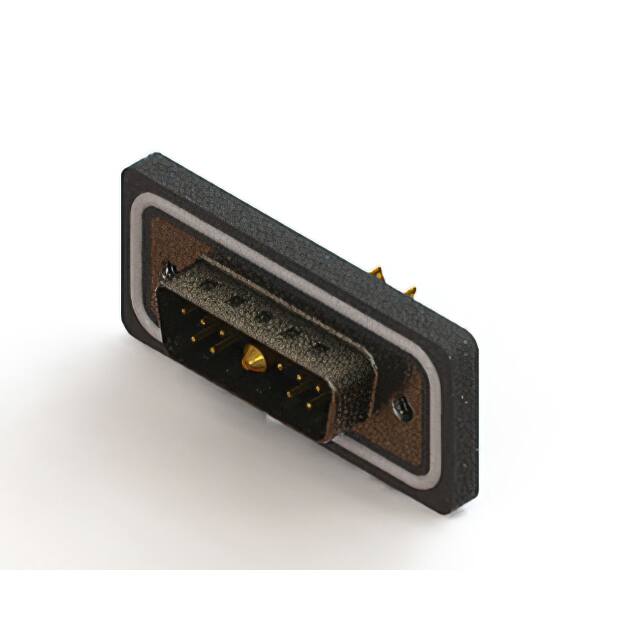

627W11W1122-4N2

Manufacturer :

EDAC Inc.

Product Category :

D-Sub Connector Assemblies

Voltage Rating :

125 V

Insulation Material :

Polybutylene Terephthalate (PBT)

Filter Type :

-

Shell Material, Finish :

Steel, Nickel Plated

Backset Spacing :

-

Flange Feature :

Housing/Shell (4-40)

Gender :

Male

Shell Material :

Steel

Ingress Protection :

IP67 - Dust Tight, Waterproof

Material Flammability Rating :

UL94 V-0

Termination Style :

Solder Cup

Maximum Operating Temperature :

+ 85 C

Mounting Type :

Panel Mount, Through Hole

Contact Type :

Signal and Power

Shell Size, Connector Layout :

2 (DA, A) - 11C1, 11W1

Minimum Operating Temperature :

- 25 C

Current Rating (Amps) :

5A, 40A

Contact Arrangement :

11W1

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Angle :

Vertical

Contact Form :

-

Product Status :

Active

Mounting Style :

THREADED INSERT

IP Rating :

IP67

Features :

Grounding Indents, Shielded

Series :

627-WC

Contact Finish Thickness :

5.00µin (0.127µm)

Wire Gauge :

-

Base Product Number :

627W11W

Color :

Black

Package :

Tray

Number of Rows :

2

Contact Finish :

Gold

Operating Temperature :

-25°C ~ 85°C

Insulation :

Insulated

Number of Positions :

11 Position

Shell Plating :

Nickel

Termination :

Solder Cup

Contact Material :

COPPER ALLOY

Connector Type :

Plug, Male Pins

Current Rating :

40 A

Contact Plating :

Gold

Connector Style :

D-Sub, Combo
