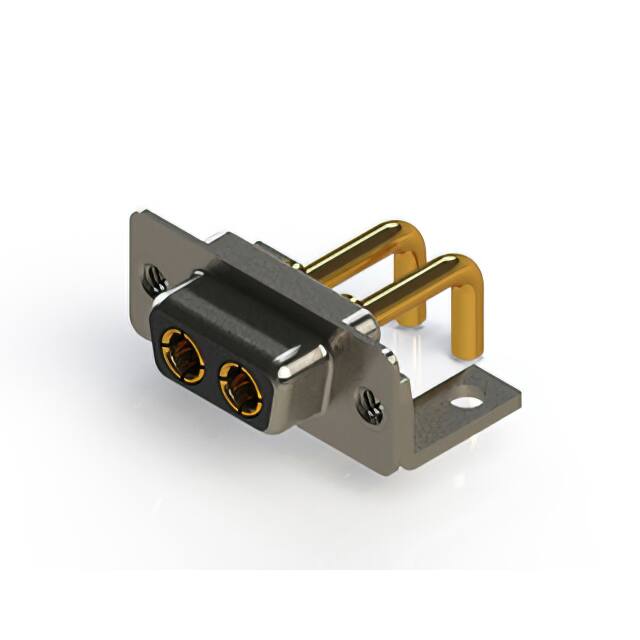

630-2W2-650-2NC
Or copy the link below:
- Mfr.Part #
- 630-2W2-650-2NC
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 2POS R/A SLDR
- Stock
- 15,012
- In Stock ：
- 15,012
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Contact Arrangement :
- 2W2
- Base Product Number :
- 630-2W2
- Shell Size :
- 9
- Shell Material :
- Steel
- Shell Material, Finish :
- Steel, Nickel Plated
- Product Status :
- Active
- Connector Style :
- D-Sub, Combo
- Dielectric Material :
- Polyester Thermoplastic
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Contact Plating :
- Gold
- Mounting Type :
- Through Hole, Right Angle
- Maximum Operating Temperature :
- + 125 C
- Shell Size, Connector Layout :
- 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2
- Termination :
- Solder
- Color :
- Black
- Flange Feature :
- Housing/Shell (M3)
- Gender :
- FEMALE
- Mounting Angle :
- RIGHT ANGLE
- Termination Style :
- Solder Tail
- Insulation :
- Insulated
- Insulation Material :
- Thermoplastic Polyester
- Backset Spacing :
- 0.520 (13.20mm)
- Contact Finish :
- Gold
- Number of Rows :
- 1
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 2 Position
- Current Rating :
- 20 A
- Shell Plating :
- Nickel
- Connector Type :
- Receptacle, Female Sockets
- Contact Type :
- Power
- Contact Form :
- -
- Series :
- 630-C
- Voltage Rating :
- 125 V
- Wire Gauge :
- -
- Material Flammability Rating :
- UL94 V-0
- Ingress Protection :
- -
- Minimum Operating Temperature :
- - 55 C
- Package :
- Tray
- Operating Temperature :
- -55°C ~ 125°C
- Current Rating (Amps) :
- 20A
- RoHS :
- Details
- Mounting Style :
- Bracket
- Features :
- Mounting Brackets
- Datasheets
- 630-2W2-650-2NC
630-C Series D-Sub, Combo Receptacle, Female Sockets 2 Position-Position Female Power Solder 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 Through Hole, Right Angle Copper Alloy Gold Steel, Nickel Plated
630-2W2-650-2NC Overview
It comes in a Receptacle, Female Sockets package.Mounting type is Through Hole, Right Angle.This product is from the 630-C Series.Device runs at -55°C ~ 125°C Operating Temperature.
630-2W2-650-2NC Features
630-C series
630-2W2-650-2NC Applications
There are a lot of EDAC Inc.
630-2W2-650-2NC D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
