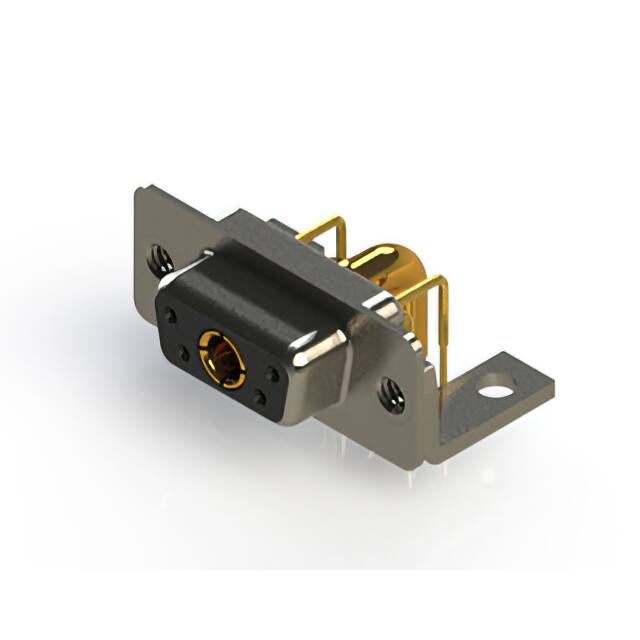

630-5W1-240-4T4
Or copy the link below:
- Mfr.Part #
- 630-5W1-240-4T4
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 5POS R/A SLDR
- Stock
- 27,334
- In Stock ：
- 27,334
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Contact Finish Thickness :
- Flash
- Flange Feature :
- Housing/Shell (4-40)
- Contact Arrangement :
- 5W1
- Termination Style :
- Solder Tail
- Shell Material, Finish :
- Steel, Tin Plated
- Current Rating :
- 5 A, 40 A
- Shell Material :
- Steel
- Number of Rows :
- 2
- Contact Material :
- COPPER ALLOY
- Current Rating (Amps) :
- 5A, 40A
- Insulation Material :
- Thermoplastic Polyester
- Connector Style :
- D-Sub, Combo
- Operating Temperature :
- -55°C ~ 125°C
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold
- Contact Type :
- Signal and Power
- Base Product Number :
- 630-5W1
- Mounting Type :
- Through Hole, Right Angle
- Wire Gauge :
- -
- Color :
- Black
- Voltage Rating :
- 125 V
- Mounting Angle :
- RIGHT ANGLE
- Contact Finish :
- Gold
- RoHS :
- Details
- Package :
- Tray
- Features :
- Mounting Brackets
- Shell Size, Connector Layout :
- 1 (DE, E) - 5W1
- Insulation :
- Insulated
- Gender :
- FEMALE
- Shell Size :
- 9
- Product Status :
- Active
- Contact Form :
- -
- Backset Spacing :
- 0.370 (9.40mm)
- Maximum Operating Temperature :
- + 125 C
- Termination :
- Solder
- Connector Type :
- Receptacle, Female Sockets
- Minimum Operating Temperature :
- - 55 C
- Ingress Protection :
- -
- Series :
- 630-C
- Number of Positions :
- 5 Position
- Shell Plating :
- Tin
- Dielectric Material :
- Polyester Thermoplastic
- Mounting Style :
- Bracket
- Datasheets
- 630-5W1-240-4T4
630-C Series D-Sub, Combo Receptacle, Female Sockets 5 Position-Position Female Signal and Power Solder 1 (DE, E) - 5W1 Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
630-5W1-240-4T4 Overview
Packaging is Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.Specifically, it is one of the products in the 630-C Series.Devices operate at -55°C ~ 125°C operating temperatures.
630-5W1-240-4T4 Features
630-C series
630-5W1-240-4T4 Applications
There are a lot of EDAC Inc.
630-5W1-240-4T4 D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
