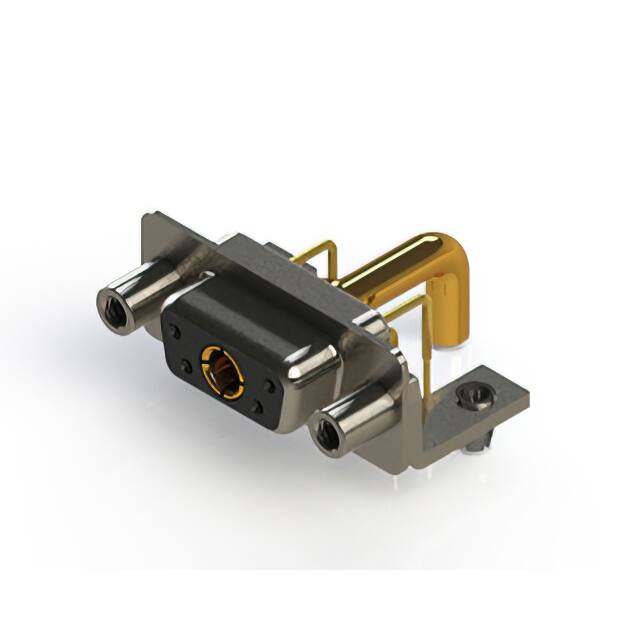

630-5W1-250-4T5
Or copy the link below:
- Mfr.Part #
- 630-5W1-250-4T5
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 5POS R/A SLDR
- Stock
- 46,196
- In Stock ：
- 46,196
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Connector Style :
- D-Sub, Combo
- Current Rating (Amps) :
- 5A, 40A
- Shell Size :
- 9
- Package :
- Tray
- Contact Finish Thickness :
- Flash
- RoHS :
- Details
- Contact Plating :
- Gold
- Contact Arrangement :
- 5W1
- Insulation :
- Insulated
- Maximum Operating Temperature :
- + 125 C
- Number of Rows :
- 2
- Flange Feature :
- Mating Side (4-40)
- Product Status :
- Active
- Shell Material, Finish :
- Steel, Tin Plated
- Voltage Rating :
- 125 V
- Minimum Operating Temperature :
- - 55 C
- Mounting Type :
- Through Hole, Right Angle
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 5 Position
- Insulation Material :
- Thermoplastic Polyester
- Shell Size, Connector Layout :
- 1 (DE, E) - 5W1
- Dielectric Material :
- Polyester Thermoplastic
- Contact Form :
- -
- Mounting Angle :
- RIGHT ANGLE
- Operating Temperature :
- -55°C ~ 125°C
- Shell Plating :
- Tin
- Current Rating :
- 5 A, 40 A
- Termination Style :
- Solder Tail
- Shell Material :
- Steel
- Color :
- Black
- Mounting Style :
- Bracket
- Backset Spacing :
- 0.370 (9.40mm)
- Contact Type :
- Signal and Power
- Wire Gauge :
- -
- Contact Finish :
- Gold
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Base Product Number :
- 630-5W1
- Connector Type :
- Receptacle, Female Sockets
- Ingress Protection :
- -
- Series :
- 630-C
- Gender :
- FEMALE
- Features :
- Board Lock, Mounting Brackets
- Datasheets
- 630-5W1-250-4T5
630-C Series D-Sub, Combo Receptacle, Female Sockets 5 Position-Position Female Signal and Power Solder 1 (DE, E) - 5W1 Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
630-5W1-250-4T5 Overview
A Receptacle, Female Sockets package is included with it.Through Hole, Right Angle indicates that the device is mounted.The product is a part of the 630-C Series.Operating temperature is set to -55°C ~ 125°C.
630-5W1-250-4T5 Features
630-C series
630-5W1-250-4T5 Applications
There are a lot of EDAC Inc.
630-5W1-250-4T5 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
