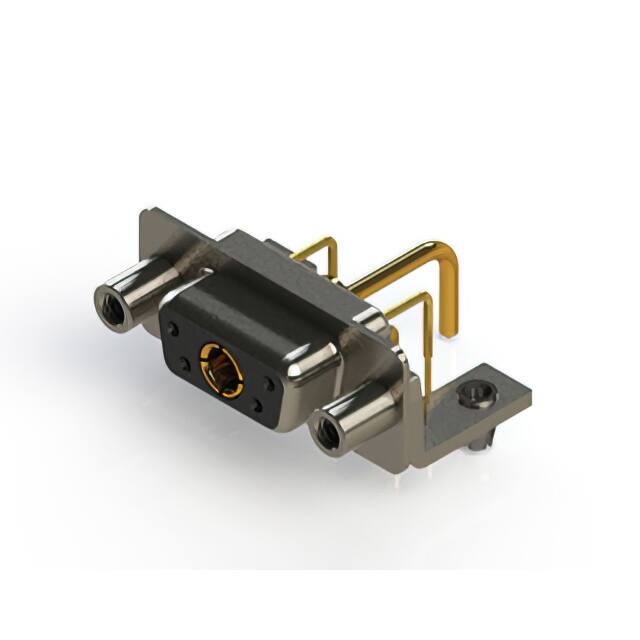

630-5W1-650-1N5
Or copy the link below:
- Mfr.Part #
- 630-5W1-650-1N5
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 5POS R/A SLDR
- Stock
- 3,263
- In Stock ：
- 3,263
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Shell Size, Connector Layout :
- 1 (DE, E) - 5W1
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Insulation :
- Insulated
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -55°C ~ 125°C
- Contact Finish :
- Gold
- Features :
- Board Lock, Mounting Brackets
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Minimum Operating Temperature :
- - 55 C
- Number of Rows :
- 2
- Contact Form :
- -
- Shell Material :
- Steel
- Current Rating (Amps) :
- 5A, 10A
- Termination Style :
- Solder Tail
- Contact Arrangement :
- 5W1
- Shell Material, Finish :
- Steel, Nickel Plated
- Base Product Number :
- 630-5W1
- Maximum Operating Temperature :
- + 125 C
- Voltage Rating :
- 125 V
- Shell Size :
- 9
- Connector Type :
- Receptacle, Female Sockets
- Shell Plating :
- Nickel
- Number of Positions :
- 5 Position
- Color :
- Black
- Flange Feature :
- Mating Side (4-40)
- Package :
- Tray
- Mounting Style :
- Bracket
- Current Rating :
- 5 A, 10 A
- RoHS :
- Details
- Connector Style :
- D-Sub, Combo
- Wire Gauge :
- -
- Dielectric Material :
- Polyester Thermoplastic
- Series :
- 630-C
- Mounting Angle :
- RIGHT ANGLE
- Gender :
- FEMALE
- Ingress Protection :
- -
- Insulation Material :
- Thermoplastic Polyester
- Contact Type :
- Signal and Power
- Mounting Type :
- Through Hole, Right Angle
- Backset Spacing :
- 0.370 (9.40mm)
- Contact Plating :
- Gold
- Product Status :
- Active
- Datasheets
- 630-5W1-650-1N5
630-C Series D-Sub, Combo Receptacle, Female Sockets 5 Position-Position Female Signal and Power Solder 1 (DE, E) - 5W1 Through Hole, Right Angle Copper Alloy Gold Steel, Nickel Plated
630-5W1-650-1N5 Overview
Packaging is in the form of Receptacle, Female Sockets.The mounting type of the device is Through Hole, Right Angle.A product of the 630-C Series, it belongs to the range of products of that series.-55°C ~ 125°C Operating Temperature is the default operating temperature for the device.
630-5W1-650-1N5 Features
630-C series
630-5W1-650-1N5 Applications
There are a lot of EDAC Inc.
630-5W1-650-1N5 D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
