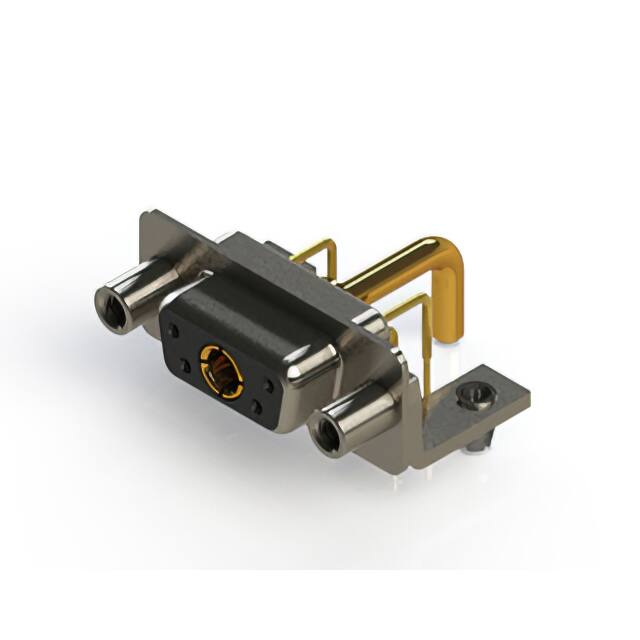

630-5W1-650-2TD
Or copy the link below:
- Mfr.Part #
- 630-5W1-650-2TD
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 5POS R/A SLDR
- Stock
- 29,810
- In Stock ：
- 29,810
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Mounting Angle :
- RIGHT ANGLE
- Mounting Style :
- Bracket
- Shell Material :
- Steel
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 5 Position
- Connector Style :
- D-Sub, Combo
- Operating Temperature :
- -55°C ~ 125°C
- Base Product Number :
- 630-5W1
- Termination Style :
- Solder Tail
- Package :
- Tray
- Voltage Rating :
- 125 V
- Shell Material, Finish :
- Steel, Tin Plated
- Maximum Operating Temperature :
- + 125 C
- Current Rating (Amps) :
- 5A, 20A
- Contact Type :
- Signal and Power
- Flange Feature :
- Mating Side (M3)
- Termination :
- Solder
- Insulation :
- Insulated
- Product Status :
- Active
- Number of Rows :
- 2
- Shell Size :
- 9
- Contact Finish :
- Gold
- RoHS :
- Details
- Shell Size, Connector Layout :
- 1 (DE, E) - 5W1
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Current Rating :
- 5 A, 20 A
- Series :
- 630-C
- Features :
- Board Lock, Mounting Brackets
- Ingress Protection :
- -
- Insulation Material :
- Thermoplastic Polyester
- Contact Plating :
- Gold
- Contact Arrangement :
- 5W1
- Gender :
- FEMALE
- Backset Spacing :
- 0.370 (9.40mm)
- Contact Form :
- -
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Receptacle, Female Sockets
- Dielectric Material :
- Polyester Thermoplastic
- Minimum Operating Temperature :
- - 55 C
- Color :
- Black
- Shell Plating :
- Tin
- Wire Gauge :
- -
- Datasheets
- 630-5W1-650-2TD
630-C Series D-Sub, Combo Receptacle, Female Sockets 5 Position-Position Female Signal and Power Solder 1 (DE, E) - 5W1 Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
630-5W1-650-2TD Overview
The product is packaged in Receptacle, Female Sockets.Through Hole, Right Angle is the mounting type.As a product of the 630-C Series, it can be found in this category.The device is operating at -55°C ~ 125°C Operating Temperature.
630-5W1-650-2TD Features
630-C series
630-5W1-650-2TD Applications
There are a lot of EDAC Inc.
630-5W1-650-2TD D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
