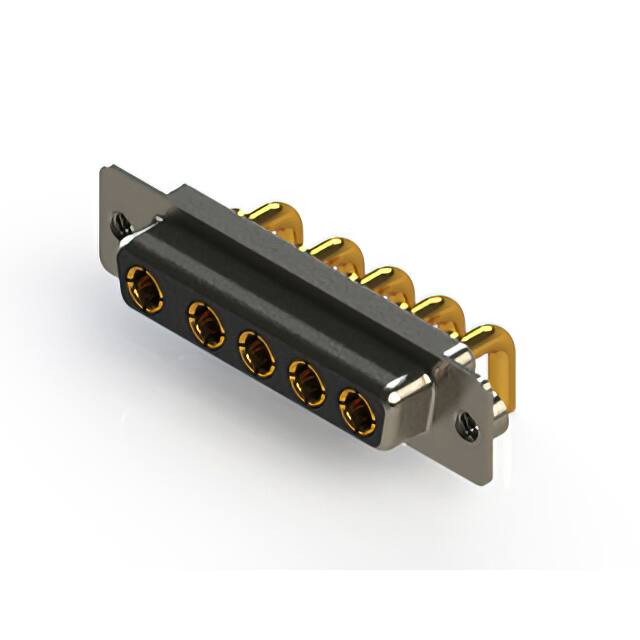

630-5W5-240-2TA
Or copy the link below:
- Mfr.Part #
- 630-5W5-240-2TA
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 5POS R/A SLDR
- Stock
- 45,110
- In Stock ：
- 45,110
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Color :
- Black
- Dielectric Material :
- Polyester Thermoplastic
- Termination :
- Solder
- Ingress Protection :
- -
- Contact Type :
- Power
- Shell Material, Finish :
- Steel, Tin Plated
- Base Product Number :
- 630-5W5
- Connector Style :
- D-Sub, Combo
- Shell Size, Connector Layout :
- 3 (DB, B) - 5W5
- Features :
- -
- Operating Temperature :
- -55°C ~ 125°C
- Voltage Rating :
- 125 V
- Number of Positions :
- 5 Position
- Package :
- Tray
- Shell Plating :
- Tin
- Mounting Style :
- THREADED INSERT
- RoHS :
- Details
- Contact Material :
- COPPER ALLOY
- Contact Finish :
- Gold
- Wire Gauge :
- -
- Number of Rows :
- 1
- Gender :
- FEMALE
- Backset Spacing :
- 0.520 (13.20mm)
- Contact Form :
- -
- Insulation :
- Insulated
- Shell Material :
- Steel
- Maximum Operating Temperature :
- + 125 C
- Product Status :
- Active
- Flange Feature :
- Board Side (M3)
- Series :
- 630-C
- Minimum Operating Temperature :
- - 55 C
- Current Rating :
- 20 A
- Contact Plating :
- Gold
- Shell Size :
- 25
- Connector Type :
- Receptacle, Female Sockets
- Mounting Angle :
- RIGHT ANGLE
- Termination Style :
- Solder Tail
- Mounting Type :
- Through Hole, Right Angle
- Current Rating (Amps) :
- 20A
- Contact Arrangement :
- 5W5
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Thermoplastic Polyester
- Contact Finish Thickness :
- Flash
- Datasheets
- 630-5W5-240-2TA
630-C Series D-Sub, Combo Receptacle, Female Sockets 5 Position-Position Female Power Solder 3 (DB, B) - 5W5 Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
630-5W5-240-2TA Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole, Right Angle.It belongs to the 630-C Series of products.The device runs in -55°C ~ 125°C Operating Temperature.
630-5W5-240-2TA Features
630-C series
630-5W5-240-2TA Applications
There are a lot of EDAC Inc.
630-5W5-240-2TA D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
