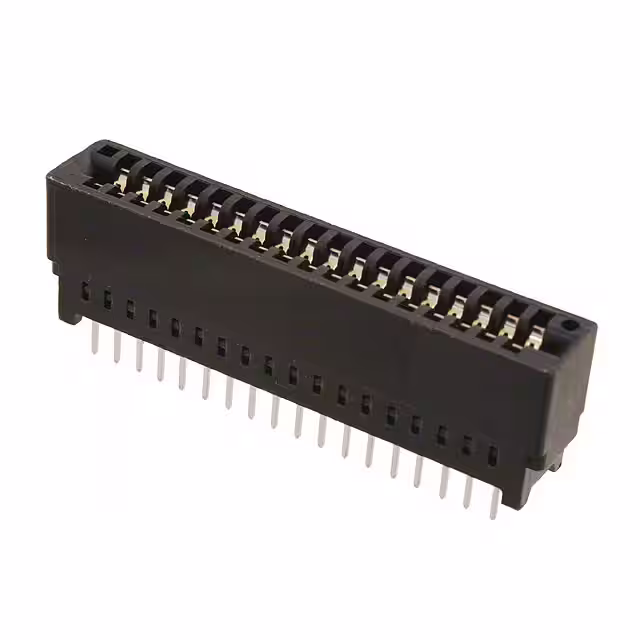

645235-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Filter Feature :

No

Number Of PCB Rows :

2

JESD-609 Code :

e3

Body Depth :

0.61 inch

Body Breadth :

0.368 inch

Insulator Color :

Black

Mounting Type :

BOARD

Mounting Style :

Straight

Body Length or Diameter :

2.06 inch

Contact Material :

Phosphor Bronze

Connector Type :

CARD EDGE CONNECTOR

Insulation Material :

GLASS FILLED POLYESTER

IEC Conformance :

No

RoHS Status :

Non-RoHS Compliant

Withdrawl Force-Min :

.556 N

Number of Conductors :

ONE

Contact Finish Termination :

Tin (Sn)

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.40

Reach Compliance Code :

Compliant

Contact Finish - Mating :

GOLD (30) OVER NICKEL

Insulation Resistance :

5000000000Ohm

Reliability :

COMMERCIAL

Number of Rows :

2

Plating Thickness :

30u inch

Dielectric Withstanding Voltage :

1000VAC V

Option :

GENERAL PURPOSE

Total Number of Contacts :

18

Contact Resistance :

10MOhm

Contact Style :

BELLOWED TYPE

MIL Conformance :

No

Operating Temperature (Min) :

-55°C

Mixed Contacts :

No

Additional Feature :

POLARIZED

Rated Current (Signal) :

2.5A

ECCN Code :

EAR99

Insertion Force-Max :

3.336 N

Mating Contact Pitch :

0.1 inch

Contact Pattern :

RECTANGULAR

Operating Temperature (Max) :

85°C

Mating Contact Row Spacing :

0.2 inch

PCB Contact Row Spacing :

5.08 mm

Reference Standard :

UL, CSA

Terminal Pitch :

2.54mm

Contact Gender :

FEMALE

DIN Conformance :

No

Body/Shell Style :

Receptacle

PCB Contact Pattern :

RECTANGULAR

Termination Type :

Solder

Terminal Length :

0.125 inch
